Norsat International Inc.

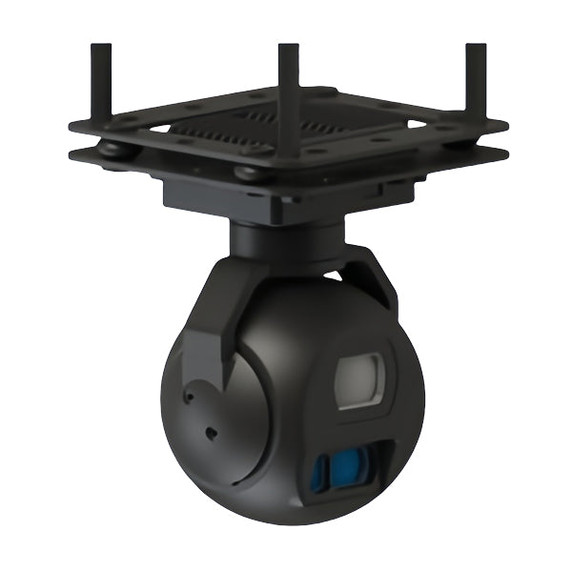

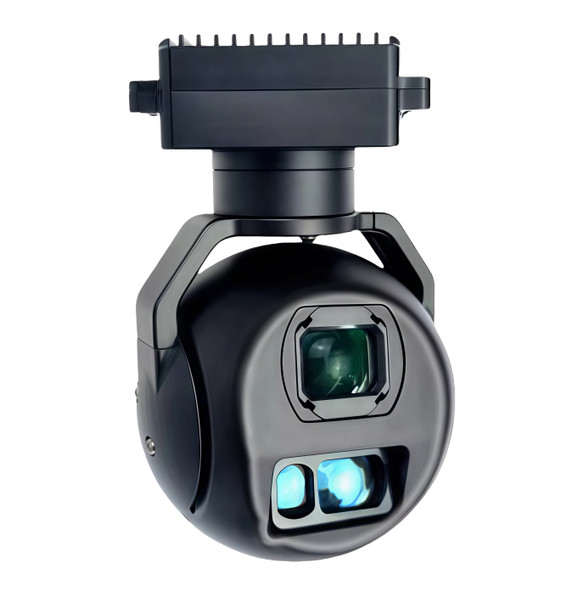

Norsat OPT072BR OPTIVIA 45x Hybrid Zoom Tracking & Recognition Two-Axis Gimbal Camera
Product Code:
OPT072BR
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.21 KGS
Width:
7.20
(cm)
Height:
10.60
(cm)
Depth:
7.20
(cm)
$17,300.00
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 5x Opt. Zoom Visible Light Camera; Laser Rangefinder |
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 905nm |
| Laser Rangefinder Ranging Range | 5 - 1200m |
| Visible Light Fov Diagonal | WIDE 61.1º TELE 12.41º |
| Visible Light Fov Horizontal | WIDE 50.12º TELE 10.81º |
| Visible Light Fov Vertical | WIDE 38.07º TELE 8.13º |
| Visible Light Resolution | 1920×1080@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby: 5W |
| Power Supply | DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART,SBUS (PWM optional) |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | 1080P RTSP Stream & Local TF Card Storage for Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 106 mm |
| Product Length | 72 mm |
| Product Weight | 0.21 kg |
| Product Width | 72 mm |
| Rotation Range Azimuth | -145° to +145° |
| Rotation Range Elevation | -30° to +100° |
| Volume | Φ: 72 × H: 106 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 280 x 230 x 280 mm |
| Unit Package Weight | 5 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Recording Time | ≥60 min ≥ Small drone flight time |
| Stabilization Accuracy Horizontal Jitter Angle | ±0.03° |
| Stabilization Accuracy Pitch Jitter Angle | ±0.02° |
| Stabilization Accuracy Roll Jitter Angle | ±0.02° |
| Standard Preinstalled Components | 5x Opt. Zoom Visible Light Camera; Laser Rangefinder |
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 905nm |
| Laser Rangefinder Ranging Range | 5 - 1200m |
| Visible Light Fov Diagonal | WIDE 61.1º TELE 12.41º |
| Visible Light Fov Horizontal | WIDE 50.12º TELE 10.81º |
| Visible Light Fov Vertical | WIDE 38.07º TELE 8.13º |
| Visible Light Resolution | 1920×1080@30fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby: 5W |
| Power Supply | DC 12V - 26.2V, the instantaneous voltage of the power supply must not exceed 27V |
| INTERFACE SPECIFICATIONS | |
| Control Method | IP, UART,SBUS (PWM optional) |
| External Interface Communication Interface | TTL |
| External Interface Video Interface | 1080P RTSP Stream & Local TF Card Storage for Video Streams |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -10°C to +55°C (20% - 80% RH) |
| Temperature Storage | -20°C to +60°C (20% to 95% RH) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 106 mm |
| Product Length | 72 mm |
| Product Weight | 0.21 kg |
| Product Width | 72 mm |
| Rotation Range Azimuth | -145° to +145° |
| Rotation Range Elevation | -30° to +100° |
| Volume | Φ: 72 × H: 106 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 280 x 230 x 280 mm |
| Unit Package Weight | 5 kg |
| Warranty | 1 |
