Norsat International Inc.
Norsat OPT076DX OPTIVIA Tactical-Grade Micro Pod - Infrared-Capable Electro-Optical POD
$34,400.00
Zoom the image with the mouse
Norsat International Inc.

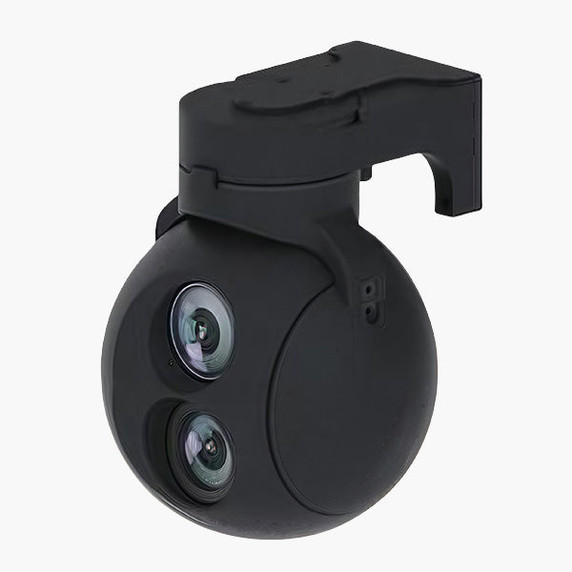

Norsat OPT063DX OPTIVIA Tactical-Grade Micro Pod - Visible Light Television Electro-Optical POD
Product Code:
OPT063DX
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.24 KGS
Width:
7.60
(cm)
Height:
8.30
(cm)
Depth:
6.30
(cm)
$34,400.00
| KEY SPECIFICATIONS | |
| Stabilization Accuracy | 0.1mrad (1°/2Hz) (1σ) |
| Standard Preinstalled Components | Visible Light Television Wide Field of View (WFOV); Visible Light Television Narrow Field of View (NFOV) |
| RF SPECIFICATIONS | |
| Visible Light Fov | 42.2 ° x 24.5° (WFOV, FL7.2 mm); 12.71° x 7.1° (NFOV, FL25 mm) |
| Visible Light Resolution | 1920×1080@60fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg 10W; Peak 20W |
| Power Supply | DC 12 - 28V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS232 |
| External Interface Video Interface | Network |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70 °C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 83 mm |
| Product Length | 63 mm |
| Product Weight | 0.24 kg |
| Product Width | 76 mm |
| Rotation Range Azimuth | -110° to +110° |
| Rotation Range Elevation | -100° to +40° |
| Volume | 63 × 76 × 83 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 280 x 230 x 280 mm |
| Unit Package Weight | 5 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Stabilization Accuracy | 0.1mrad (1°/2Hz) (1σ) |
| Standard Preinstalled Components | Visible Light Television Wide Field of View (WFOV); Visible Light Television Narrow Field of View (NFOV) |
| RF SPECIFICATIONS | |
| Visible Light Fov | 42.2 ° x 24.5° (WFOV, FL7.2 mm); 12.71° x 7.1° (NFOV, FL25 mm) |
| Visible Light Resolution | 1920×1080@60fps |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg 10W; Peak 20W |
| Power Supply | DC 12 - 28V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS232 |
| External Interface Video Interface | Network |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70 °C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 83 mm |
| Product Length | 63 mm |
| Product Weight | 0.24 kg |
| Product Width | 76 mm |
| Rotation Range Azimuth | -110° to +110° |
| Rotation Range Elevation | -100° to +40° |
| Volume | 63 × 76 × 83 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8525893900 |
| Unit Package Dimensions | 280 x 230 x 280 mm |
| Unit Package Weight | 5 kg |
| Warranty | 1 |
