Norsat International Inc.
Norsat MLINK-100463 0.5m Ka-Band Maritime Antenna
Product Code:
MLINK-100463
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.5m |
| Antenna Category | Maritime |
| ANTENNA SPECIFICATIONS | |

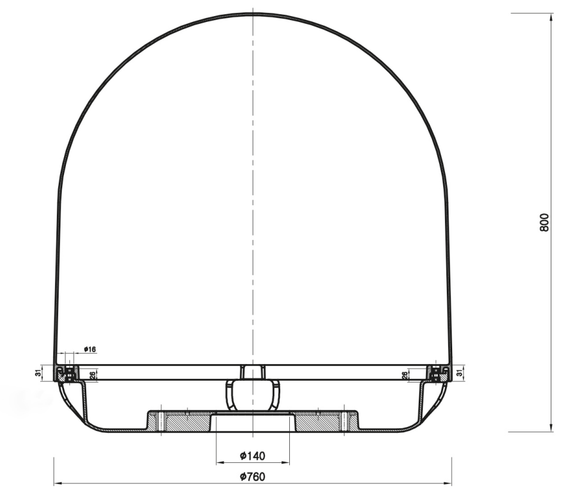

| Antenna Dimension | 76 cm (D) x 80 cm (H) |
| Antenna Input Power | 48V DC 4.18A |
| Azimuth Range | Unlimited |
| BMIP | Included |
| Cross Angle | ± 35° |
| Elevation Angle | -10° to +110° |
| Number Of Ports | 4-ports (includes automatic polarization switching module) |
| Operating Platform | 3 - Axis |
| Ship Motion | Roll: ±20° at 8-12 sec periods Pitch: ±10° at 6-12 sec periods Yaw: ±8° at 15-20 sec periods |
| Tracking Speed | More than 90°/sec |
| Vibration Damper | Rubber Damper Included |
| RF SPECIFICATIONS | |
| Rx Frequency | 20.2 - 21.2 GHz |
| Rx Gain | 40.0 dBi @ Mid Freq GHz |
| Tx Frequency | 30.0 - 31.0 GHz |
| Tx Gain | 43.0 dBi @ Mid Freq GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20° to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Antenna Weight | 65 kg |
| Packed By | Paper Carton |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | 5A991.G |
| Ex Works | Korea |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 94 cm x 94 cm x 114 cm |
| Unit Package Height | 114 cm |
| Unit Package Length | 94 cm |
| Unit Package Weight | 88.5 kg |
| Unit Package Width | 94 cm |
