Norsat International Inc.
Norsat MLINK-100461 2.4 m C-Band Maritime Antenna
Product Code:
MLINK-100461
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Maritime |
| Band | C-Band |
| Customization | Mounting Legs Are Not Included |
| ANTENNA SPECIFICATIONS | |
| ACU Input Power | 100 ~ 200V AC / 200 ~ 240V AC 50/60Hz, 8A/4A |
| ACU Rx Output Power | 48V DC, 4.18A |
| ACU Size | 19” Rack 1U size |
| ACU Tx Output Power | 48V DC, 3.2A |

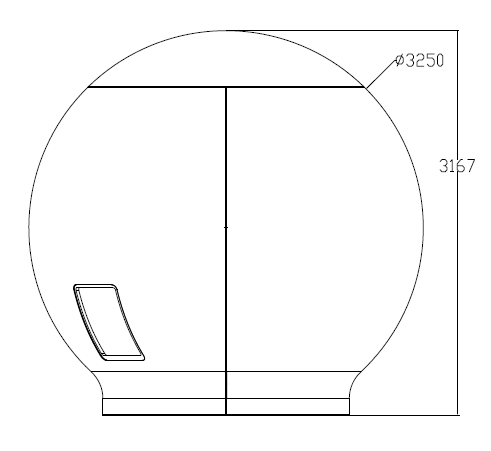

| Antenna Dimension | 325 cm (D) x 317 cm (H) |
| Antenna Input Power | 90~264V AC 47/63Hz 17A |
| Azimuth Range | Unlimited |
| Cross Angle | ± 35° |
| Elevation Angle | -10° to +120° |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Operating Platform | 3 - Axis |
| Ship Motion | Roll: ±15° at 8-12 sec periods Pitch: ±10° at 6-12 sec periods Yaw: ±8° at 15-20 sec periods |
| Skew Control | Automatic |
| Tracking Speed | More than 90°/sec |
| RF SPECIFICATIONS | |
| G/T | 18.3 dB/K (LNB dependent) |
| Rx Frequency | 3.4 - 4.2 GHz |
| Rx Gain | 38 dBi @ Mid Freq GHz |
| Tx Frequency | 5.850 - 6.725 GHz |
| Tx Gain | 41.7 dBi @ Mid Freq GHz |
| INTERFACE SPECIFICATIONS | |
| External I/O | RS-232C, Mini-USB, Ethernet, Console |
| Remote Interface | Tmonitor, SCS Software, Telnet Terminal |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20° to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Antenna Weight | 530 kg |
| Packed By | Wooden Crate |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | 5A991.G |
| Ex Works | Korea |
