Norsat International Inc.

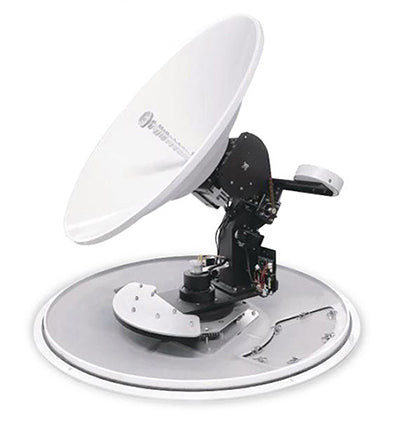

Norsat MLINK-100434 MarineLink 0.8m Ku-Band Maritime Antenna - DEMO
Norsat MarineLink™ series provides reliable satellite communication at sea with a 2048kb/s downlink and 512kb/s uplink. The MarineLink’s 3-axis operating platform and 360 degree
high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.8m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Range | Unlimited |
| Elevation Angle | -15° to 120° |
| Operating Platform | 3-Axis Stabilized + Auto Skew |
| Ship Motion Pitch | ± 10° @6 - 12 sec |
| Ship Motion Roll | ± 20° @8 - 12 sec |
| Ship Motion Yaw | ± 8° @15 - 20 sec |
| RF SPECIFICATIONS | |
| G/T | 16.5dB/K (Clear Sky, 30° Elevation) |
| Rx Frequency | 13.75 – 14.50 GHz |
| Rx Gain | 39.5dBi@12.5GHz |
| Tx Frequency | 13.75 – 14.50 GHz |
| Tx Gain | 40.3dBi@14.25 GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -25° to +55°C |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
