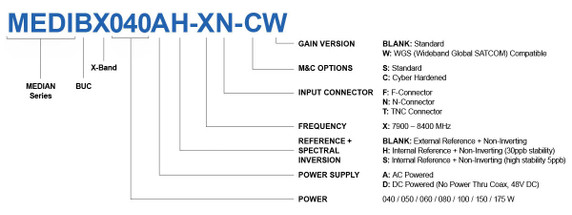

Norsat MEDIBX175DH-XT-S MEDIAN 175W X-Band GaAs BUC (DC + INT Ref Standard Stability)
For the X-Band Median BUC, a receive reject filter must be purchased as an add-on accessory unless:
1) you are using a Tx-only antenna and do not require the receive function; or
2) your terminal already includes embedded filters. The receive reject filter is sold separately at an additional cost.
The Standard Version MEDIAN BUCs offer higher gain to reduce the need for line amplifiers in long cable runs (IFL). In contrast, the WGS-Compatible Versions have lower gain to allow operation with IF signals driven up to 0 dBm.
Cyber-Hardened Intelligent BUCs are designed to enhance satellite ground terminal security for industries requiring optimized and flexible protection. These BUCs implement effective security management controls—including encrypted authentication, privacy, and access control—to ensure end-to-end message transmission. They help protect against session hijacking, password attacks, and eavesdropping.
| KEY SPECIFICATIONS | |
| Band | X-Band |
| Frequency Sense | Non-Inverting |
| Input Frequency Band 1 | 950 - 1450 MHz |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 7.900 - 8.400 GHz |
| Output Power Rated | 175W |
| Product Family | MEDIAN |
| Reference Type | Internal Standard Stability |
| RF SPECIFICATIONS | |
| AM-PM Conversion | < 3.0 deg/dB @ Rated Power |
| Attenuator Range | 30 dB Variable in 0.1 dB Steps |
| Gain Flatness (1Mhz) | 0.25 dB p-p max |
| Gain Flatness (36Mhz) | 1.5 dB p-p max |
| Gain Flatness (Over Full Band) | 4 dB p-p max |
| Gain Variation Over Temperature (Open Loop) | 3 dB p-p max |
| Gain Variation Over Temperature (Witg AGC) | 1 dB p-p max |
| Gain Version | Std Options and Std Specs |
| Group Delay Linear | 0.03 ns/MHz |
| Group Delay Parabolic | 0.003 ns/MHz178 |
| Group Delay Ripple | 1 ns p-p Over Any 36 MHz |
| Harmonics | -60 dBc max |
| IMD3 | -27 dBc max |
| Input Impedance | 50 Ohm |
| Input Power Detector Range | -35 to 0 dBm |
| Input VSWR | 1.5 : 1 |
| Level Stability With ALC | ± 0.5 dB |
| Mute | -70 dBc Max. |
| Output Noise Power Density Rx | < -165 dBm/Hz (with RX Reject Filter) |
| Output Noise Power Density Tx | < -75 dBm/Hz |
| Output P1db | +52.4 dBm min |
| Output Plin | 46.8 dBm |
| Output Spurious In Band | 65 dBc |
| Output Spurious Out Of Band | Complies with MIL-STD 188-164C |
| Output VSWR | 1.5 : 1 max |
| Phase Noise 0.01Khz Offset Max | -55 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -100 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -110 dBc/Hz |
| Small Signal Gain | 72 dB min |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 1200 W |
| Output Power Detector Range | Rated Power to -20 dB |
| Power Reading Accuracy | ± 1.0 dB max |
| Power Requirements | 42-60V DC |
| Power Supply | DC Powered, No Power Thru Coax, 48 ± 11 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | TNC |
| Output Connector | CPR-112G |
| M AND C SPECIFICATIONS | |
| M And C Interface | Standard M&C |
| Option | Standard M&C |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft (3,000 m) ASL |
| Humidity | 100% Condensing |
| IP Rating | IP 65+ |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 188 mm |
| Product Length | 412 mm |
| Product Weight | 14.5 kg |
| Product Width | 254 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517620090 |
| Unit Package Dimensions | 610 mm x 381 mm x 381 mm |
| Unit Package Height | 381 mm |
| Unit Package Length | 610 mm |
| Unit Package Width | 381 mm |
| Warranty | 3 years |
