Norsat International Inc.

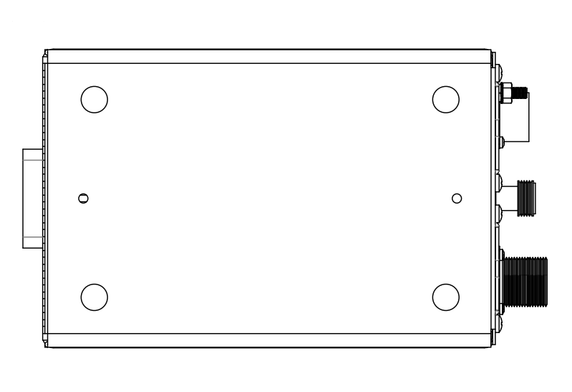

Norsat MEDIBKU016E 16W Ku-Band BUC
Product Code:
MEDIBKU016E
Availability:
YES
Weight:
4.50 KGS
Width:
13.90
(cm)
Height:
11.70
(cm)
Depth:
20.60
(cm)
$7,350.00
| KEY SPECIFICATIONS | |
| Product Family | MEDIAN |
| Band | Ku-Band |
| Output Power (Rated) | 16W |
| Noise Figure | 65 dB |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 16 W |
| Output Power( P1dB) | 42 dBm min |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Phase Noise @ 1MHz offset | -103 dBc/Hz |
| Conversion Gain | 65 dB |
| Gain Variation over operating band | +/- 2.0 dBm over full extended band |
| Gain Variation over temperature | +/- 1.5 dBm |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -55 dBc max |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ Rated Power | 130W |
| Power Consumption @Psat | 115W at 3 dB back-off from rated power |
| Power Requirements | 36 - 72 V ; 48 V over IFL (optional) |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS - 232 / RS - 485 / Ethernet |
| M & C Connector | 1PT02E - 14 - 19P (MS3112) |
| LED Indicators | Red, Yellow |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +55°C |
| Weatherproofing | IP 65 |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Fan |
| Dimensions (L x W x H) | 206 x 136 x 117 mm |
| Weight | 4.50 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Product Family | MEDIAN |
| Band | Ku-Band |
| Output Power (Rated) | 16W |
| Noise Figure | 65 dB |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 16 W |
| Output Power( P1dB) | 42 dBm min |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 1KHz offset | -73 dBc/Hz |
| Phase Noise @ 10KHz offset | -83 dBc/Hz |
| Phase Noise @ 100KHz offset | -93 dBc/Hz |
| Phase Noise @ 1MHz offset | -103 dBc/Hz |
| Conversion Gain | 65 dB |
| Gain Variation over operating band | +/- 2.0 dBm over full extended band |
| Gain Variation over temperature | +/- 1.5 dBm |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -55 dBc max |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ Rated Power | 130W |
| Power Consumption @Psat | 115W at 3 dB back-off from rated power |
| Power Requirements | 36 - 72 V ; 48 V over IFL (optional) |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS - 232 / RS - 485 / Ethernet |
| M & C Connector | 1PT02E - 14 - 19P (MS3112) |
| LED Indicators | Red, Yellow |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -30 to +55°C |
| Weatherproofing | IP 65 |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Fan |
| Dimensions (L x W x H) | 206 x 136 x 117 mm |
| Weight | 4.50 kg |
Download
| Download Name | |
| Norsat MEDIBKU016E 16W Ku-Band BUC Data Sheet | |
