Norsat International Inc.

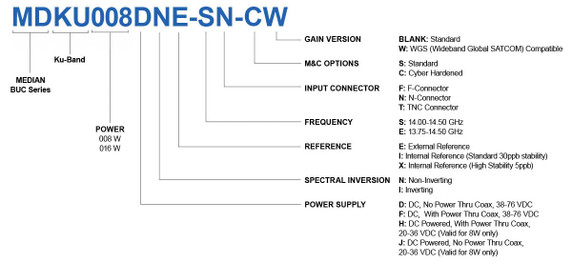

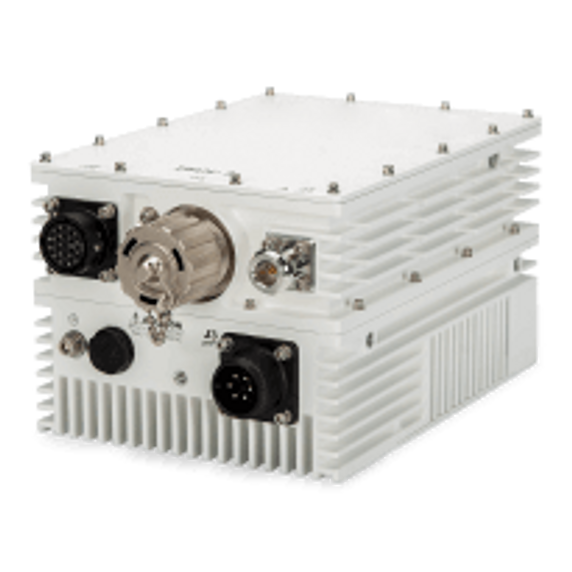

Norsat MDKU008HNI-SF-SW MEDIAN 8W Ku-Band GaAs BUC (DC 20-36V + INT Ref Standard Stability + Standard M&C)
The Standard Version MEDIAN BUCs offer higher gain to reduce the need for line amplifiers in long cable runs (IFL). In contrast, the WGS-Compatible Versions have lower gain to allow operation with IF signals driven up to 0 dBm.
Cyber-Hardened Intelligent BUCs are designed to enhance satellite ground terminal security for industries requiring optimized and flexible protection. These BUCs implement effective security management controls—including encrypted authentication, privacy, and access control—to ensure end-to-end message transmission. They help protect against session hijacking, password attacks, and eavesdropping.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency Sense | Non-Inverting |
| Input Frequency Band 1 | 950 - 1450 MHz |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 14.00 - 14.50 GHz |
| Output Power Rated | 8W |
| Reference Type | Internal Standard Stability |
| RF SPECIFICATIONS | |
| Attenuator Range | 30 dB variable in 0.1 dB steps |
| Gain Flatness (1Mhz) | 0.25 dB p-p max |
| Gain Flatness (36Mhz) | 1.5 dB p-p max |
| Gain Flatness (Over Full Band) | 4 dB p-p max |
| Gain Variation Over Temperature (Open Loop) | 3 dB p-p max |
| Gain Variation Over Temperature (Witg AGC) | 1 dB p-p max |
| Gain Version | WGS Compatibility Option |
| Harmonics | -50 dBc max. |
| IMD3 | -25 dBc max |
| Input Impedance | 50 Ohm |
| Input Power Detector Range | -35 to 0 dBm |
| Input VSWR | 1.5 : 1 |
| Level Stability With ALC | ± 0.5 dB |
| Output Noise Power Density Rx | < -145 dBm/Hz |
| Output Noise Power Density Tx | < -83 dBm/Hz |
| Output Psat | +39 dBm min |
| Output Spurious In Band | -65 dBc |
| Output Spurious Out Of Band | Complies with EN 301 428/430 & MIL-STD 188-164C |
| Output VSWR | 1.5 : 1 max |
| Phase Noise 0.01Khz Offset Max | -50 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -80 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -115 dBc/Hz |
| Small Signal Gain | 59 dB min |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption Plin | 70W |
| Output Power Detector Range | Rated power to -20 dB |
| Power Reading Accuracy | ± 1.0 dB max. |
| Power Requirements | 20 to 36 VDC |
| Power Supply | DC Powered, With Power Thru Coax, 20-36 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F |
| Output Interface | WR75 Cover with Groove |
| M AND C SPECIFICATIONS | |
| M And C Interface | Standard M&C |
| Option | Standard M&C |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft (3,000 m) ASL |
| Humidity | 100% Condensing |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height Case 1 | 102 mm |
| Product Length Case 1 | 178 mm |
| Product Weight | 2.5 kg |
| Product Width Case 1 | 127 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517620090 |
| Package Height Case 1 | 203.2 mm |
| Package Length Case 1 | 304.8 mm |
| Package Width Case 1 | 203.2 mm |
| Unit Package Weight | 3.18 kg |
| Warranty | 3 years |
