Norsat International Inc.

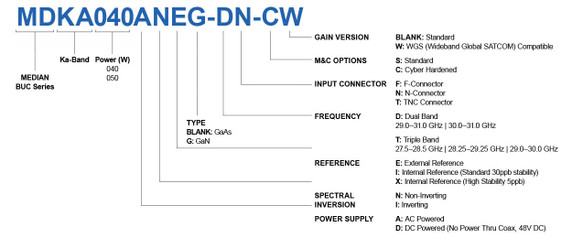

Norsat MDKA050ANXG-DF-C MEDIAN 50W Ka Dual Band GaN BUC (AC + INT Ref High Stability)
The Standard Version MEDIAN BUCs offer higher gain to reduce the need for line amplifiers in long cable runs (IFL). In contrast, the WGS-Compatible Versions have lower gain to allow operation with IF signals driven up to 0 dBm.
Cyber-Hardened Intelligent BUCs are designed to enhance satellite ground terminal security for industries requiring optimized and flexible protection. These BUCs implement effective security management controls—including encrypted authentication, privacy, and access control—to ensure end-to-end message transmission. They help protect against session hijacking, password attacks, and eavesdropping.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Frequency Sense | Non-Inverting |
| Input Frequency Band 1 | 950 - 1950 MHz |
| Input Frequency Band 2 | 1000 - 2000 MHz |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Frequency Band 2 | 30.00 - 31.00 GHz |
| Output Power Rated | 50W |
| Reference Type | Internal High Stability |
| RF SPECIFICATIONS | |
| AM-PM Conversion | < 2 Deg/dB@Plin |
| Attenuator Range | 30 dB variable in 0.1 dB steps |
| Gain Flatness (1Mhz) | 4 dB p-p max |
| Gain Flatness (36Mhz) | 2 dB p-p max |
| Gain Flatness (Over Full Band) | 4 dB p-p max |
| Gain Variation Over Temperature (Open Loop) | 1 dB p-p max |
| Gain Variation Over Temperature (Witg AGC) | WR28 UG Cover with Groove |
| Gain Version | Std Options and Std Specs |
| Input Impedance | 50 Ohm |
| Input Power Detector Range | -55 to -20 dBm |
| Input VSWR | 1.5 : 1 |
| Level Stability With ALC | ± 0.5 dB |
| Output Noise Power Density Tx | < -74 dBm/Hz |
| Output Plin | +44 dBm min |
| Output Psat | +47 dBm typ |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Of Band | -60 dBc |
| Output VSWR | 1.3 : 1 max |
| Small Signal Gain | 78 dB min |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption Plin | 360VA |
| Current Consumption Psat | 480VA |
| Output Power Detector Range | Rated power to -20 dB |
| Power Reading Accuracy | ± 1.0 dB max. |
| Power Requirements | 100 to 240 VAC |
| Power Supply | AC Powered |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F |
| M AND C SPECIFICATIONS | |
| M And C Interface | Cyber Hardened |
| Option | Cyber Hardened |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft (3,000 m) ASL |
| Humidity | 100% Condensing |
| IP Rating | IP 65+ |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 165 mm |
| Product Length | 267 mm |
| Product Weight | 5.8 kg |
| Product Width | 152 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517620090 |
| Unit Package Dimensions | 432 mm x 254 mm x 254 mm |
| Unit Package Height | 254 mm |
| Unit Package Length | 432 mm |
| Unit Package Weight | 6.35 kg |
| Unit Package Width | 254 mm |
| Warranty | 3 years |
