Norsat International Inc.

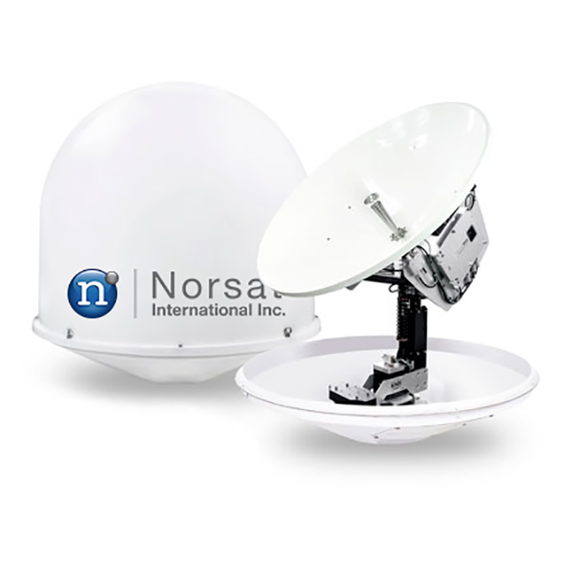

Norsat COM150KU MarineLink 1.5 m Ku-Band Maritime Antenna
Product Code:
COM150KU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
492.00 KGS
Width:
220.00
(cm)
Height:
220.00
(cm)
Depth:
240.00
(cm)
$88,011.00
Norsat MarineLink™ COM series provides reliable and uninterrupted satellite communication at sea. The MarineLink’s 3-axis operating platform and 360 degree high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.5m |
| Band | Ku-Band |
| Reflector Material | Honeycomb FRP |
| ANTENNA SPECIFICATIONS | |
| ACU Size | 19” Rack 1U size |
| Antenna Dimension | 212 cm (D) x 206 cm (H) |
| Antenna Input Power | 48V DC, 4.18A |
| Azimuth Range | Unlimited |
| Cross Angle | ± 35° |
| Elevation Angle | -15° to +110° |
| External I/O | RS-232C, Mini-USB, Ethernet, Console |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Operating Platform | 3 - Axis |
| Ship Motion | Roll: ±25° at 8-12 sec periods; Pitch: ±15° at 6-12 sec periods; Yaw: ±8° at 15-20 sec periods |
| Skew Control | Automatic |
| Tracking Speed | More than 90°/sec |
| Vibration Damper | Rubber Damper and Shock Absorber included |
| RF SPECIFICATIONS | |
| G/T | 22.89 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, clear sky |
| Input Power | 100 ~ 120V AC / 200 ~ 240V AC 50/60Hz, 8A/4A |
| Output VSWR | 2.0 : 1 max. |
| Rx Frequency | 10.75 - 12.75 GHz |
| Rx Gain | 43.8 dBi @ 11.75 GHz |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 45.25 dBi @ 14.25 GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Antenna Weight | 260 kg |
| Packed By | Wooden Crate |
| Product Height Case 1 | 240 cm |
| Product Length Case 1 | 220 cm |
| Product Weight | 492 kg |
| Product Width Case 1 | 220 cm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $0 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | 5A991.G |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 240 mm |
| Package Length Case 1 | 220 mm |
| Package Width Case 1 | 220 mm |
| Unit Package Dimensions | 220 mm x 220 mm x 240 mm |
| Unit Package Weight | 0.492 kg |
| Warranty | 1 year |
