Norsat International Inc.

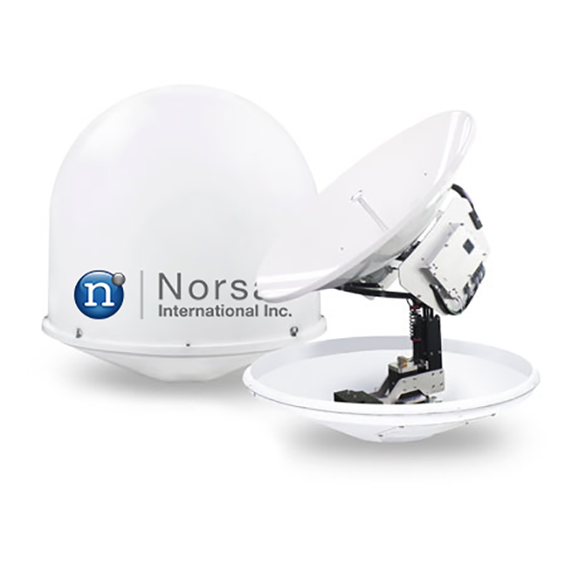

Norsat COM120KU MarineLink 1.2 m Ku-Band Maritime Antenna
Product Code:
COM120KU
Condition:
New
Availability:
10 - 12 Weeks
Weight:
310.00 KGS
Width:
174.00
(cm)
Height:
190.00
(cm)
Depth:
190.00
(cm)
$67,386.00
Norsat MarineLink™ COM series provides reliable and uninterrupted satellite communication at sea. The MarineLink’s 3-axis operating platform and 360 degree high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2m |
| Band | Ku-Band |
| Reflector Material | Honeycomb FRP |
| ANTENNA SPECIFICATIONS | |
| ACU Size | 19” Rack 1U size |
| Angle Display Resolution | 0.1 degrees |
| Antenna Dimension | 161 cm (D) x 163 cm (H) |
| Antenna Input Power | 48V DC, 4.18A |
| Antenna Type | KA-180 |
| Azimuth Range | Unlimited |
| Azimuth Speed | 10º/sec |
| Cross Angle | ± 35° |
| Cross Polarization Isolation | 35dB |
| Dish Diameter | 1.2 M |
| Dual Antenna System | both Ethernet and serial |
| Elevation Angle | -10° to +110° |
| Encoder Accuracy AZ | 0.01º |
| External I/O | Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422, EMCON, RF Connector (N or F-type, Option) |
| GYRO Free | Can choose normal or gyro free mode |
| Gyro Interface | NMEA 2000, NMEA 0183, Synchro, Step by Step |
| Operating Platform | 3 - Axis |
| Preset Satellite | 80 satellites |
| Ship Motion Pitch | ±14˚ at 6-12 sec periods |
| Ship Motion Roll | ±24˚ at 8-12 sec periods |
| Ship Motion Yaw | ±8˚ at 15-20 sec periods |
| Skew Control | Automatic |
| Tracking Speed | More than 90°/sec |
| Vibration Damper | Shock Absorber and Rubber Damper included |
| RF SPECIFICATIONS | |
| G/T | 20.33 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky |
| Input Power | 100 ~ 120V AC / 200 ~ 240V AC 50/60Hz, 8A/4A |
| Output VSWR | 2.0 : 1 max. |
| Rx Frequency | 10.75 - 12.75 GHz |
| Rx Gain | 40.95 dBi @ 11.75 GHz |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 42.87 dBi @ 14.25 GHz |
| INTERFACE SPECIFICATIONS | |
| Logs | Save the logs for max 100 days |
| PCU Temperature Monitoring | Able to check temperature inside of PCU |
| Remote Software Update | Both local and remote update |
| Wifi Access | Able to access to ACU through Wi-Fi without any LAN cable connection |
| ENVIRONMENTAL SPECIFICATIONS | |
| EMCON | Emissions Control solution to inhibit the TX for the military project |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20°C to +55°C |
| Temperature Survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Antenna Weight | 138 kg |
| Certification | CE0678, MIL-STD-901, MIL-STD-810, MIL-STD-461 MIL-STD-167, Intelsat, Anatel, Eutelsat |
| NIM Tuner | DVB-S2 ACM and DBV-S2X for high throughput satellite |
| Packed By | Wooden Crate |
| Product Dimensions Height | 1630 mm |
| Product Dimensions Length | 1610 mm |
| Product Dimensions Width | 1610 mm |
| Product Weight | 310 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 69 kg |
| Aluminium Total Value | 172.5 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | 5A991.G |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 174 mm x 174 mm x 190 mm |
| Unit Package Dimensions Height | 1900 mm |
| Unit Package Dimensions Length | 1740 mm |
| Unit Package Dimensions Width | 1740 mm |
| Unit Package Weight | 165 kg |
| Warranty | 1 year |
