Norsat International Inc.

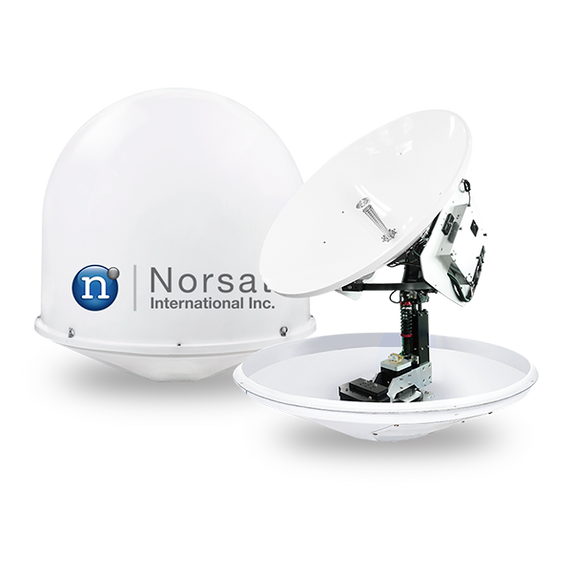

Norsat MarineLink 1.0m Ku-Band Maritime Antenna
Product Code:
COM100KU
Condition:
New
Availability:
YES
Weight:
247.00 KGS
Width:
158.00
(cm)
Height:
158.00
(cm)
Depth:
177.00
(cm)
$71,828.00
Norsat MarineLink™ COM series provides reliable and uninterrupted satellite communication at sea. The MarineLink’s 3-axis operating platform and 360 degree high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
| KEY SPECIFICATIONS | |
| Product Family | MarineLINK |
| Band | Ku-Band |
| Reflector Diameter | 1.0M |
| Acquisition & Tracking | Automatic |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| Receive Frequency | Ku-Band: 10.75 - 12.75 GHz |
| ANTENNA SPECIFICATIONS | |
| Elevation Range | -18° to +110° |
| Azimuth Range | Unlimited |
| Standard BUC Options | 2W,3W,4W,6W,8W,10W,16W,20W,40W |
| Standard LNB Options | 1000H/HS1000/1000HDF/1000XDF/1000HU/1000XU Series |
| Operating Platform | 3-Axis |
| Skew Control | Automatic |
| Cross Angle | ± 35° |
| Ship Motion | Roll: ±24° at 8-12 sec periods; Pitch: ±14° at 6-12 sec periods; Yaw: ±8° at 15-20 sec periods |
| Tracking Speed | > 90° / sec |
| Vibration Damper | Wire Rope Isolator, Shock Absorber and Rubber Damper included |
| ACU Size | 19” Rack 1U size |
| External I/O | RS-232C, Mini-USB, Ethernet,Console |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Antenna Input Power | 100 ~ 120V AC / 200 ~ 240V AC, 50/60Hz, 8A/4A |
| Antenna Output Power | 48V DC, 4.18A |
| RF SPECIFICATIONS | |
| G/T | 18.89 dB/K (in Radome) @ 30deg.Elevation angle and 11.75 GHz,clear sky |
| Midband Gain | 41.0 dBi @ 14.25 GHz (Tx); 40.0 dBi @ 11.75 GHz(Rx) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -20°C to +55°C |
| Humidity | Up to 100% @ 40˚C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 158 x 158 x 177 cm |
| Weight | 247 Kg |
5 customers are viewing this product
Details
Norsat MarineLink™ COM series provides reliable and uninterrupted satellite communication at sea. The MarineLink’s 3-axis operating platform and 360 degree high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
| KEY SPECIFICATIONS | |
| Product Family | MarineLINK |
| Band | Ku-Band |
| Reflector Diameter | 1.0M |
| Acquisition & Tracking | Automatic |
| Transmit Frequency | Ku-Band: 13.75 - 14.50 GHz |
| Receive Frequency | Ku-Band: 10.75 - 12.75 GHz |
| ANTENNA SPECIFICATIONS | |
| Elevation Range | -18° to +110° |
| Azimuth Range | Unlimited |
| Standard BUC Options | 2W,3W,4W,6W,8W,10W,16W,20W,40W |
| Standard LNB Options | 1000H/HS1000/1000HDF/1000XDF/1000HU/1000XU Series |
| Operating Platform | 3-Axis |
| Skew Control | Automatic |
| Cross Angle | ± 35° |
| Ship Motion | Roll: ±24° at 8-12 sec periods; Pitch: ±14° at 6-12 sec periods; Yaw: ±8° at 15-20 sec periods |
| Tracking Speed | > 90° / sec |
| Vibration Damper | Wire Rope Isolator, Shock Absorber and Rubber Damper included |
| ACU Size | 19” Rack 1U size |
| External I/O | RS-232C, Mini-USB, Ethernet,Console |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Antenna Input Power | 100 ~ 120V AC / 200 ~ 240V AC, 50/60Hz, 8A/4A |
| Antenna Output Power | 48V DC, 4.18A |
| RF SPECIFICATIONS | |
| G/T | 18.89 dB/K (in Radome) @ 30deg.Elevation angle and 11.75 GHz,clear sky |
| Midband Gain | 41.0 dBi @ 14.25 GHz (Tx); 40.0 dBi @ 11.75 GHz(Rx) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -20°C to +55°C |
| Humidity | Up to 100% @ 40˚C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 158 x 158 x 177 cm |
| Weight | 247 Kg |
