Norsat International Inc.

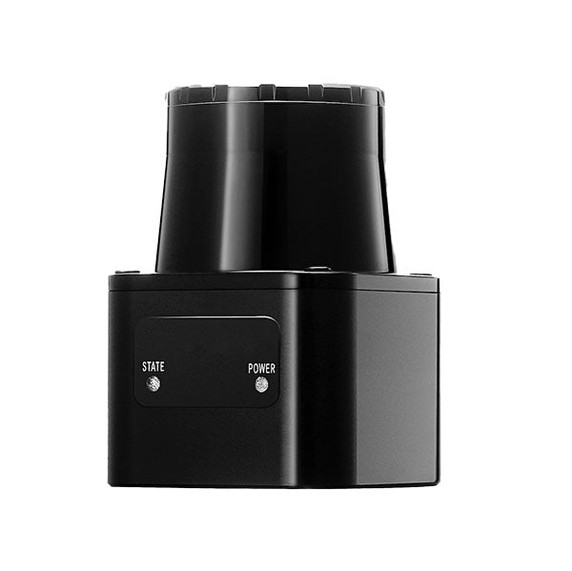

Norsat LUMRC050-02 LUMENIX Mini Slam Nivigation LiDAR
Product Code:
LUMRC050-02
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
5.50
(cm)
Height:
7.25
(cm)
Depth:
5.00
(cm)
$1,530.00
Makes mobile robots (AMR) become smaller and more agile With Compact Design and more powerful Performance in accuracy, scanning frequency and resolution
| KEY SPECIFICATIONS | |
| Data Rates | 27000/32400 points/sec |
| Horizontal FOV | 270° |
| Horizontal Resolution | 0.125°@15HZ/0.25°@25HZ |
| Laser Wavelength | 905nm |
| Number Of Channels | 1 |
| Operating Range | 50m (15m@10%) |
| Ranging Accuracy | ±2cm |
| Ranging Distance | 0.05 - 50m |
| Response Time | <67ms |
| Scanning Frequency | 15Hz/25Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 4W |
| INTERFACE SPECIFICATIONS | |
| Communication Interface | Ethernet and IO |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP66 GB / T 4208-2007 |
| Laser Safety | Class I (eye safety) EN 60825-1:2014 |
| Temperature Operational | -25°C to +50°C |
| Temperature Storage | -30℃ - 70℃ |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 72.5 mm |
| Product Length | 50 mm |
| Product Weight | 0.3 kg |
| Product Width | 55 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.9 kg |
| Aluminium Total Value | $ 2.25 |
| Country Of Origin | Made in China |
| ECCN Number | 5A992 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 9015109000 |
| Warranty | 1 year |
