Norsat International Inc.

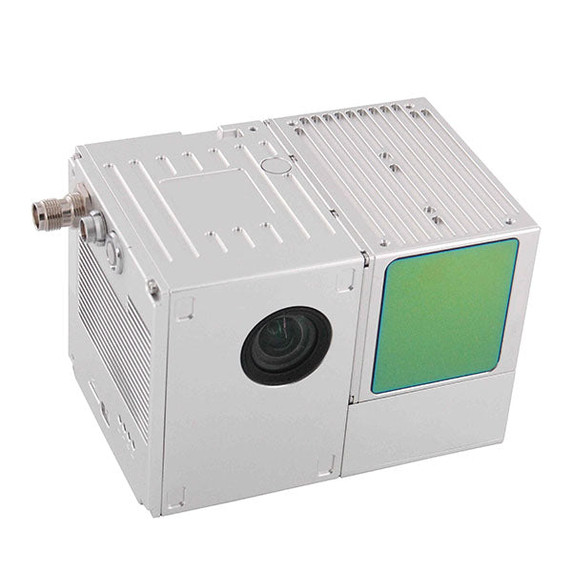

Norsat LUMIE120-10C LUMENIX Entry Level, Short-Range Detection Aerial LiDAR Solution

Name: Norsat LUMIE120-10C LUMENIX Entry Level, Short-Range Detection Aerial LiDAR Solution
Brand: Norsat International Inc.
SKU: LUMIE120-10C
Price: 20100 USD
Availability: InStock

No reviews yet

Product Code: LUMIE120-10C

Condition: New

Availability: 1 - 2 Weeks

Weight: 1.00 KGS

Width: 9.40 (cm)

Height: 9.10 (cm)

Depth: 13.60 (cm)

$20,100.00

KEY SPECIFICATIONS
Accuracy Absolute	10cm@100m
Accuracy Relative	±1 cm
Camera Effective Pixel	26MP
Camera Scanning Mode	SHARE
Laser Data	Triple echo, 720,000 Points/Sec
Laser Horizontal FOV	70°
Laser Measuring Range	120m
Laser Range Accuracy	±1cm
Laser Scanning Mode	Equivalent to 64-beam
Laser Vertical FOV	4.5°
Mapping Mode	RTK/PPK
POS GNSS Signal Type	GPS L1/L2; GLO L1/L2; GAL E1/E5b; BDS B1/B3/B2a (Supports BeiDou-only Mode)
POS Heading Accuracy	0.040°
POS Pitch Accuracy	0.015°
POS Positioning Accuracy Horizontal	≤0.05m
POS Roll Accuracy	0.015°
POS Update Rate	200 Hz
Response Time	real-time
ELECTRICAL SPECIFICATIONS
Operating Voltage	12 - 24V
Power Consumption	20W
INTERFACE SPECIFICATIONS
Point Cloud Density	140pts/㎡@100m@10m/s
Processing Storage	Point Cloud Creater
Software Mission Planning Software	(Optional) Customized Route Planning Software — WayPoint Master
Software Point Cloud Automata	(Optional) PCA software - point cloud classification and post processing software
Software Point Cloud Creater	Perpetual license - Self-developed PointCloud Creater software
Storage	64GB, Max suport 256GB TF card
Supported Platform	Multi-Rotor Drones, vehicals/Other DIY options available
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational	-20°C to 55°C
Temperature Storage	-40°C to 70°C
PHYSICAL SPECIFICATIONS
Material	Aluminum Alloy Body
Product Height	91 mm
Product Length	136 mm
Product Weight	1 kg
Product Width	94 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	N/A - No US Content
Ex Works	Hong Kong
Harmonized System Code	9015800090
Unit Package Dimensions	450 x 365 x 200 mm
Unit Package Weight	8 kg
Warranty	1 year
