Norsat International Inc.

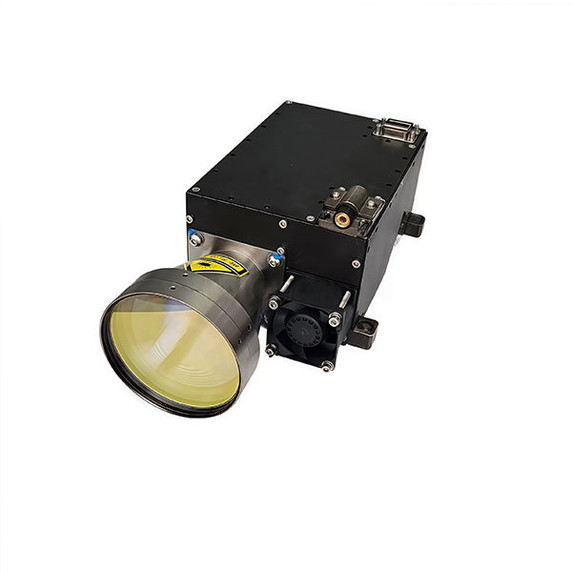

Norsat LTDF50 OPTIVIA 160mJ Laser Target Designator, 50000m

Name: Norsat LTDF50 OPTIVIA 160mJ Laser Target Designator, 50000m
Brand: Norsat International Inc.
SKU: LTDF50
Price: 299900 USD
Availability: InStock

No reviews yet

Product Code: LTDF50

Condition: New

Availability: 10 - 12 Weeks

Weight: 1.95 KGS

Width: 13.00 (cm)

Height: 9.60 (cm)

Depth: 23.00 (cm)

$299,900.00

RF SPECIFICATIONS
Laser Target Designator Accuracy	± 2m
Laser Target Designator Illumination Frequency	20Hz
Laser Target Designator Optical Axis Instability	≤0.03 mrad
Laser Target Designator Ranging Range	200 - 50000m
Laser Target Designator Wavelength	1064±3nm
Laser Target Designator Beam Divergence	0.3 - 0.4 mrad
Laser Target Designator Continuous Ranging Duration	≥1min(5Hz)
Laser Target Designator Illumination Duration	Single cycle: ≥60s (interval: 60s, 2 cycles); Single cycle: ≥17s (interval: 10s, 10 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes.
Laser Target Designator Illumination Range	≥200m - 16000m
Laser Target Designator Laser Energy	160mJ
ELECTRICAL SPECIFICATIONS
Power Consumption	Avg ≤150W
Power Supply	DC 22 - 32V (typ 28V)
INTERFACE SPECIFICATIONS
External Interface Communication Interface	RS422
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational	-40°C to +60°C
Temperature Storage	-55°C to +70°C
PHYSICAL SPECIFICATIONS
Product Height	96 mm
Product Length	230 mm
Product Weight	1.95 kg
Product Width	130 mm
Volume	≤230 x 130 x 96 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Harmonized System Code	9013200093
Unit Package Dimensions	660 x 500 x 450 mm
Unit Package Weight	25 kg
Warranty	1
