Norsat International Inc.

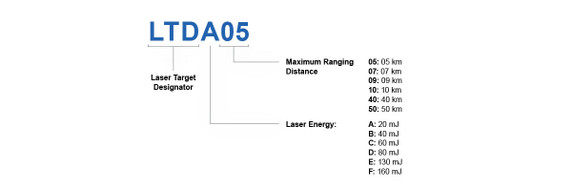

Norsat LTDD40 OPTIVIA 80mJ Laser Target Designator, 40000m
Product Code:
LTDD40
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.80 KGS
Width:
10.20
(cm)
Height:
5.50
(cm)
Depth:
15.00
(cm)
$141,800.00
| RF SPECIFICATIONS | |
| Laser Target Designator Accuracy | ± 2m |
| Laser Target Designator Illumination Frequency | 20Hz |
| Laser Target Designator Optical Axis Instability | ≤0.03 mrad |
| Laser Target Designator Ranging Range | 200 - 40000m |
| Laser Target Designator Wavelength | 1064±3nm |
| Laser Target Designator Beam Divergence | 0.12 - 0.3 mrad |
| Laser Target Designator Continuous Ranging Duration | ≥1min(5Hz) |
| Laser Target Designator Illumination Duration | Single cycle: ≥60s (interval: 60s, 2 cycles); Single cycle: ≥17s (interval: 10s, 8 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| Laser Target Designator Illumination Range | ≥200m - 8000m |
| Laser Target Designator Laser Energy | 80mJ |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg ≤80W |
| Power Supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 55 mm |
| Product Length | 150 mm |
| Product Weight | 0.8 kg |
| Product Width | 102 mm |
| Volume | ≤150 x 102 x 55 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9013200093 |
| Unit Package Dimensions | 370 x 240 x 380 mm |
| Unit Package Weight | 7 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Target Designator Accuracy | ± 2m |
| Laser Target Designator Illumination Frequency | 20Hz |
| Laser Target Designator Optical Axis Instability | ≤0.03 mrad |
| Laser Target Designator Ranging Range | 200 - 40000m |
| Laser Target Designator Wavelength | 1064±3nm |
| Laser Target Designator Beam Divergence | 0.12 - 0.3 mrad |
| Laser Target Designator Continuous Ranging Duration | ≥1min(5Hz) |
| Laser Target Designator Illumination Duration | Single cycle: ≥60s (interval: 60s, 2 cycles); Single cycle: ≥17s (interval: 10s, 8 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| Laser Target Designator Illumination Range | ≥200m - 8000m |
| Laser Target Designator Laser Energy | 80mJ |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg ≤80W |
| Power Supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 55 mm |
| Product Length | 150 mm |
| Product Weight | 0.8 kg |
| Product Width | 102 mm |
| Volume | ≤150 x 102 x 55 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9013200093 |
| Unit Package Dimensions | 370 x 240 x 380 mm |
| Unit Package Weight | 7 kg |
| Warranty | 1 |
