Norsat International Inc.

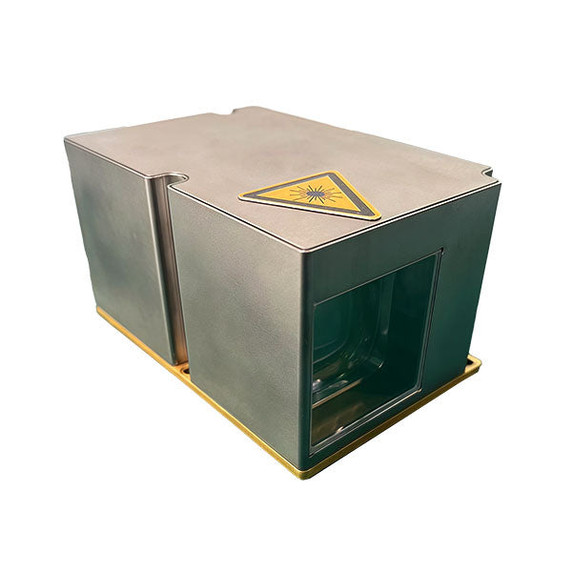

Norsat LTDB07 OPTIVIA 40mJ Laser Target Designator, 7000m
Product Code:
LTDB07
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.60 KGS
Width:
6.50
(cm)
Height:
5.20
(cm)
Depth:
9.80
(cm)
$82,900.00
| RF SPECIFICATIONS | |
| Laser Target Designator Accuracy | ± 2m |
| Laser Target Designator Illumination Frequency | 20Hz |
| Laser Target Designator Optical Axis Instability | ≤0.03 mrad (1 sigma, per illumination cycle) |
| Laser Target Designator Ranging Range | ≥200 - 7000m (Visibility ≥10km, 2.3m x 2.3m target, target reflectivity ≥20%) (Ranging shall not be performed on targets within 100m) |
| Laser Target Designator Wavelength | 1064±3nm |
| Laser Target Designator Beam Divergence | ≤0.4 mrad |
| Laser Target Designator Continuous Ranging Duration | 5min(1Hz), 2min(5Hz): 1Hz, ≤5min, rest≥5min; 5Hz, ≤2min, rest≥2min; |
| Laser Target Designator Illumination Duration | Single-Shot: Single cycle≥25s (interval: ≤15s, 8 cycles); Rapid-Shot: Single cycle: ≥60s (interval: 60s, 2 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| Laser Target Designator Illumination Range | ≥200m - 4000m |
| Laser Target Designator Laser Energy | 40mJ |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg ≤25W; Standby ≤5W; Peak Current ≤3A |
| Power Supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS-422 (Configurable RS232 & TTL Interfaces) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 52 mm |
| Product Length | 98 mm |
| Product Weight | 0.6 kg |
| Product Width | 65 mm |
| Volume | 98 x 65 x 52 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Unit Package Dimensions | 330 x 230 x 280 mm |
| Unit Package Weight | 6 kg |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Target Designator Accuracy | ± 2m |
| Laser Target Designator Illumination Frequency | 20Hz |
| Laser Target Designator Optical Axis Instability | ≤0.03 mrad (1 sigma, per illumination cycle) |
| Laser Target Designator Ranging Range | ≥200 - 7000m (Visibility ≥10km, 2.3m x 2.3m target, target reflectivity ≥20%) (Ranging shall not be performed on targets within 100m) |
| Laser Target Designator Wavelength | 1064±3nm |
| Laser Target Designator Beam Divergence | ≤0.4 mrad |
| Laser Target Designator Continuous Ranging Duration | 5min(1Hz), 2min(5Hz): 1Hz, ≤5min, rest≥5min; 5Hz, ≤2min, rest≥2min; |
| Laser Target Designator Illumination Duration | Single-Shot: Single cycle≥25s (interval: ≤15s, 8 cycles); Rapid-Shot: Single cycle: ≥60s (interval: 60s, 2 cycles); After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
| Laser Target Designator Illumination Range | ≥200m - 4000m |
| Laser Target Designator Laser Energy | 40mJ |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg ≤25W; Standby ≤5W; Peak Current ≤3A |
| Power Supply | DC 22 - 32V (typ 28V) |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS-422 (Configurable RS232 & TTL Interfaces) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 52 mm |
| Product Length | 98 mm |
| Product Weight | 0.6 kg |
| Product Width | 65 mm |
| Volume | 98 x 65 x 52 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Unit Package Dimensions | 330 x 230 x 280 mm |
| Unit Package Weight | 6 kg |
| Warranty | 1 |
