Norsat International Inc.

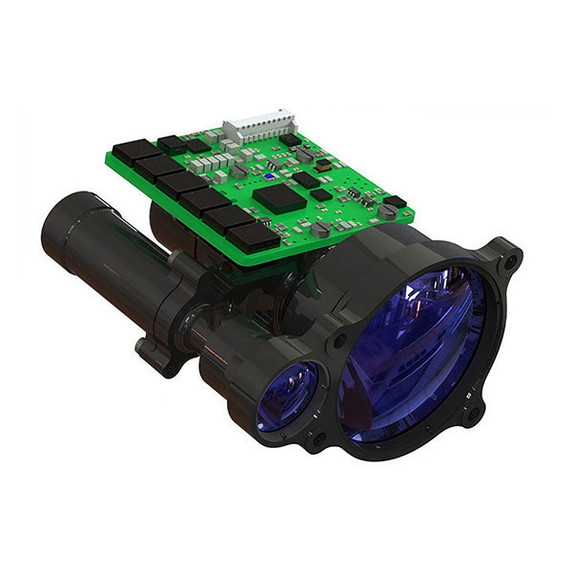

Norsat LRFB9500GC OPTIVIA 1535 nm Laser Rangefinder LRFB9500GC
Product Code:
LRFB9500GC
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.10 KGS
Width:
5.90
(cm)
Height:
4.20
(cm)
Depth:
6.60
(cm)
$4,200.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 10nm |
| Laser Rangefinder Ranging Range | ≥80m - 9500m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤0.001; Avg≤3W |
| Power Supply | DC 5V - 14V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422/TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 66 mm |
| Product Weight | ≤0.102 kg |
| Product Width | 59 mm |
| Volume | ≤66 x 59 x 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 10nm |
| Laser Rangefinder Ranging Range | ≥80m - 9500m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤0.001; Avg≤3W |
| Power Supply | DC 5V - 14V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422/TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 66 mm |
| Product Weight | ≤0.102 kg |
| Product Width | 59 mm |
| Volume | ≤66 x 59 x 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
