RF SPECIFICATIONS | |
Laser Rangefinder Accuracy | ≤±1m |
Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
Laser Rangefinder Ranging Range | ≥30m-6000m |
ELECTRICAL SPECIFICATIONS | |
Power Consumption | Standby1≤1.5W (No Laser Emission at Power-On); Standby2≤3.5W (Continuous Ranging at 10Hz); Peak≤8W |
Power Supply | DC 9 - 15V |
INTERFACE SPECIFICATIONS | |
External Interface Communication Interface | RS422 |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature Operational | -40°C to +60°C |
Temperature Storage | -50°C to +70°C |

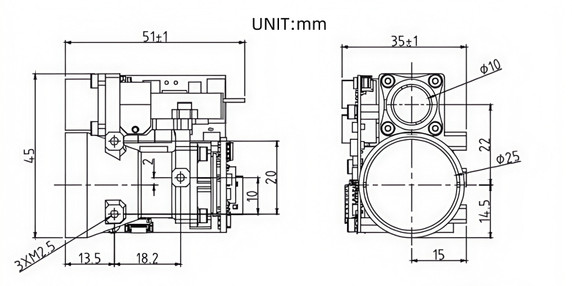

PHYSICAL SPECIFICATIONS | |
Product Height | 45 mm |
Product Length | 51 mm |
Product Weight | ≤0.075g |
Product Width | 35 mm |
Volume | ≤51 x 35 x 45 mm |
ADDITIONAL INFORMATION | |
Country Of Origin | Made in China |
ECCN Number | EAR99 |
Harmonized System Code | 9015800090 |
Warranty | 1 |
