Norsat International Inc.
Norsat LRFB5000DD OPTIVIA 1535 nm Laser Rangefinder LRFB5000DD
Product Code:
LRFB5000DD
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.08 KGS
Width:
4.35
(cm)
Height:
3.40
(cm)
Depth:
6.20
(cm)
$2,415.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 10nm |
| Laser Rangefinder Ranging Range | 20m - 5000m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤2W; Peak≤5W |
| Power Supply | DC 10 - 14V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 / TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -55°C to +75°C |

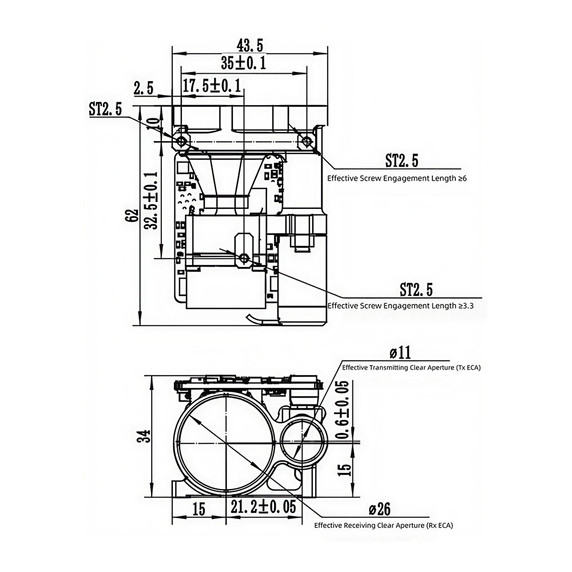

| PHYSICAL SPECIFICATIONS | |
| Product Height | 34 mm |
| Product Length | 62 mm |
| Product Weight | ≤0.08 kg |
| Product Width | 43.5 mm |
| Volume | ≤62 x 43.5.5 x 34 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 10nm |
| Laser Rangefinder Ranging Range | 20m - 5000m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤2W; Peak≤5W |
| Power Supply | DC 10 - 14V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 / TTL(Optional) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -55°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 34 mm |
| Product Length | 62 mm |
| Product Weight | ≤0.08 kg |
| Product Width | 43.5 mm |
| Volume | ≤62 x 43.5.5 x 34 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
