Norsat International Inc.

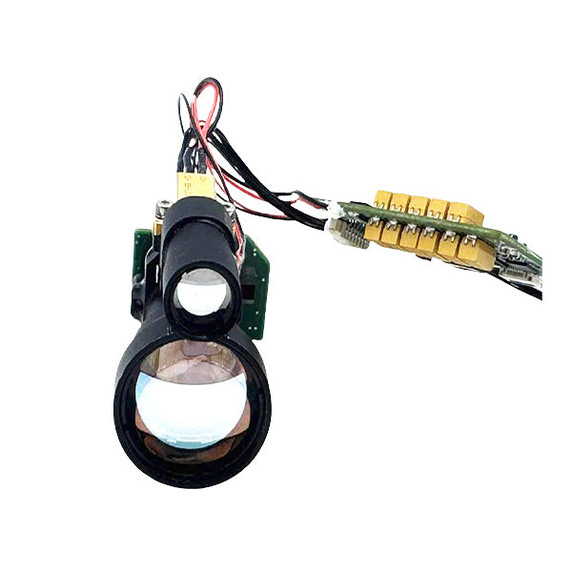

Norsat LRFB4000EC OPTIVIA 1535 nm Laser Rangefinder LRFB4000EC
Product Code:
LRFB4000EC
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.09 KGS
Width:
3.40
(cm)
Height:
4.50
(cm)
Depth:
5.40
(cm)
$3,000.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m/±2m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | ≥30m-4000m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤3.5W(Continuous ranging at 10Hz); Peak≤7W |
| Power Supply | DC 9 - 15V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 54 mm |
| Product Weight | ≤0.085 kg |
| Product Width | 34 mm |
| Volume | ≤54 x 34 x 45 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m/±2m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | ≥30m-4000m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤3.5W(Continuous ranging at 10Hz); Peak≤7W |
| Power Supply | DC 9 - 15V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45 mm |
| Product Length | 54 mm |
| Product Weight | ≤0.085 kg |
| Product Width | 34 mm |
| Volume | ≤54 x 34 x 45 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
