Norsat International Inc.
Norsat LRFB17500IC OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC
$8,400.00
Zoom the image with the mouse
Norsat International Inc.

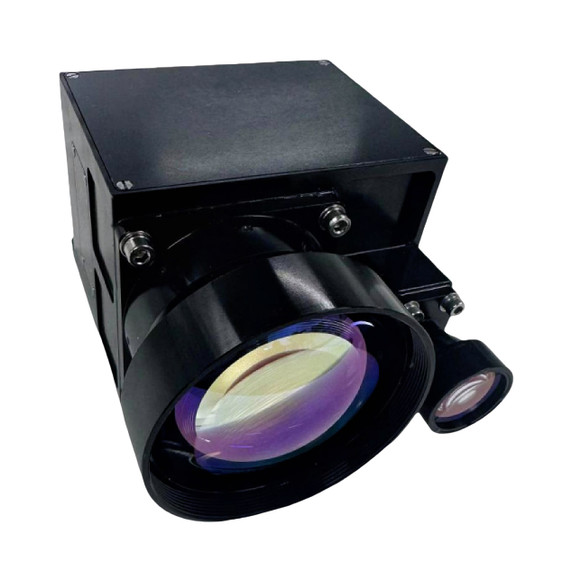

Norsat LRFB20000HC OPTIVIA 1535 nm Laser Rangefinder LRFB20000HC
Product Code:
LRFB20000HC
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.84 KGS
Width:
10.27
(cm)
Height:
7.60
(cm)
Depth:
13.20
(cm)
$27,400.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±3m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | ≥100m-17000m (visibility ≥23 km, 2.3m × 4.6m vehicle or equivalent target panel,relative humidity ≤60%，target reflectivity 0.3) ≥100m-20000m (23 km visibility; target reflectivity 0.3; relative humidity ≤ 60%) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤10W |
| Power Supply | DV 22 - 34V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 76 mm |
| Product Length | 132 mm |
| Product Weight | ≤0.84 kg |
| Product Width | 102.7 mm |
| Volume | ≤132 x 102.7 x 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±3m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 5nm |
| Laser Rangefinder Ranging Range | ≥100m-17000m (visibility ≥23 km, 2.3m × 4.6m vehicle or equivalent target panel,relative humidity ≤60%，target reflectivity 0.3) ≥100m-20000m (23 km visibility; target reflectivity 0.3; relative humidity ≤ 60%) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤10W |
| Power Supply | DV 22 - 34V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 76 mm |
| Product Length | 132 mm |
| Product Weight | ≤0.84 kg |
| Product Width | 102.7 mm |
| Volume | ≤132 x 102.7 x 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
