Norsat International Inc.

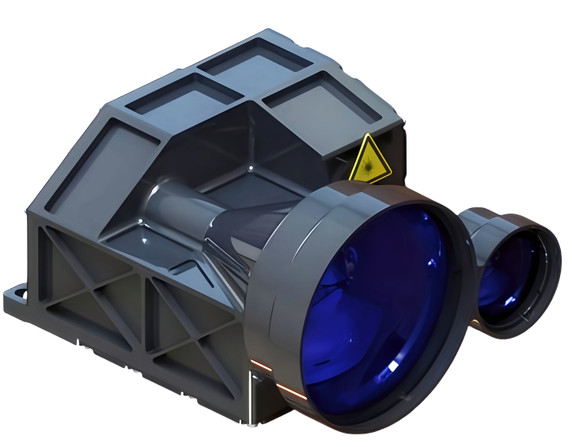

Norsat LRFB17500IC OPTIVIA 1535 nm Laser Rangefinder LRFB17500IC
Product Code:
LRFB17500IC
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.60 KGS
Width:
10.80
(cm)
Height:
7.50
(cm)
Depth:
14.40
(cm)
$8,400.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1m |
| Laser Rangefinder Operating Wavelength | 1535nm ± 10nm |
| Laser Rangefinder Ranging Range | ≥120m - 17500m |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤2.5W; Avg≤6W |
| Power Supply | DC 18 - 36V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | RS422 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 75 mm |
| Product Length | 144 mm |
| Product Weight | ≤0.596 kg |
| Product Width | 108 mm |
| Volume | ≤144 x108 x 75 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
