Norsat International Inc.
Norsat LRFA3000CA OPTIVIA 905 nm Laser Rangefinder LRFA3000CA
Product Code:
LRFA3000CA
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.06 KGS
Width:
4.95
(cm)
Height:
2.90
(cm)
Depth:
5.05
(cm)
$1,502.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1m |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥15m-3000m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤1W; Avg≤2W@(3.3V, 1Hz); Operating Power≤2W@(5V，1Hz) |
| Power Supply | DC 4.5 - 5.5V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |

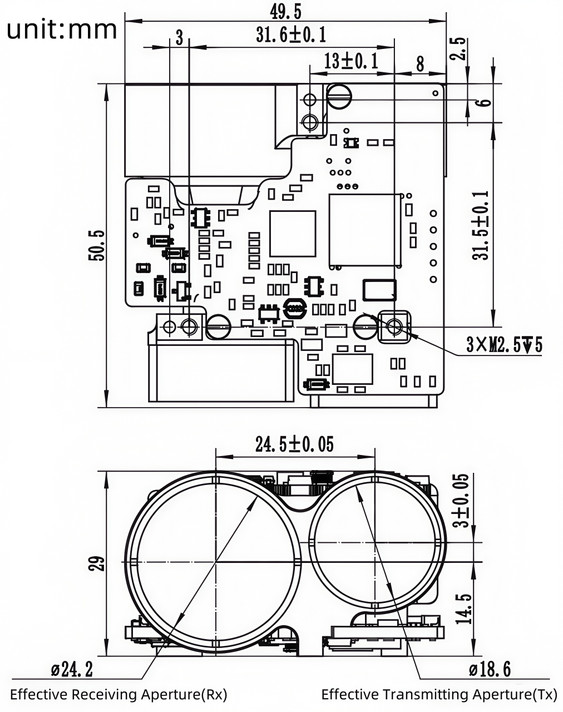

| PHYSICAL SPECIFICATIONS | |
| Product Height | 29 mm |
| Product Length | 50.5 mm |
| Product Weight | ≤0.062 kg |
| Product Width | 49.5 mm |
| Volume | ≤50.5 x 49.5 x 29 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1m |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥15m-3000m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤1W; Avg≤2W@(3.3V, 1Hz); Operating Power≤2W@(5V，1Hz) |
| Power Supply | DC 4.5 - 5.5V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 29 mm |
| Product Length | 50.5 mm |
| Product Weight | ≤0.062 kg |
| Product Width | 49.5 mm |
| Volume | ≤50.5 x 49.5 x 29 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
