Norsat International Inc.
Norsat LRFA2000AB OPTIVIA 905 nm Laser Rangefinder LRFA2000AB
Product Code:
LRFA2000AB
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.01 KGS
Width:
2.50
(cm)
Height:
1.60
(cm)
Depth:
2.65
(cm)
$339.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1(≤400m); ≤±(L×0.3%) (>400m) |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥5m-2000m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤1W |
| Power Supply | DC 3 - 5V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -30°C to +70°C |

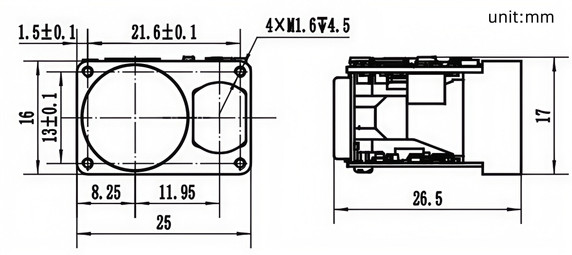

| PHYSICAL SPECIFICATIONS | |
| Product Height | 16 mm |
| Product Length | 26.5 mm |
| Product Weight | ≤0.013 kg |
| Product Width | 25 mm |
| Volume | ≤26.5 x 25 x16 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1(≤400m); ≤±(L×0.3%) (>400m) |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥5m-2000m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Avg≤1W |
| Power Supply | DC 3 - 5V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -30°C to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 16 mm |
| Product Length | 26.5 mm |
| Product Weight | ≤0.013 kg |
| Product Width | 25 mm |
| Volume | ≤26.5 x 25 x16 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
