Norsat International Inc.
Norsat LRFA1500AB OPTIVIA 905 nm Laser Rangefinder LRFA1500AB
Product Code:
LRFA1500AB
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.01 KGS
Width:
2.46
(cm)
Height:
1.28
(cm)
Depth:
2.58
(cm)
$251.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1m |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥5m-1500m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤1W; Avg≤1.5W |
| Power Supply | DC 3 - 5V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -30°C to +60°C |

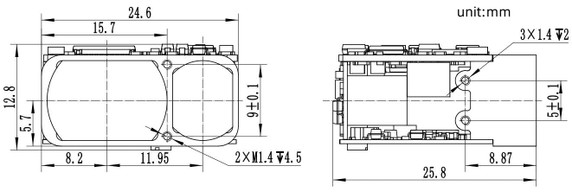

| PHYSICAL SPECIFICATIONS | |
| Product Height | 12.8 mm |
| Product Length | 25.8 mm |
| Product Weight | ≤0.01 kg |
| Product Width | 24.6 mm |
| Volume | ≤25.8 x 24.6 x 12.8 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
