Norsat International Inc.
Norsat LRFA1200BA OPTIVIA 905 nm Laser Rangefinder LRFA1200BA
Product Code:
LRFA1200BA
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.02 KGS
Width:
4.60
(cm)
Height:
2.30
(cm)
Depth:
2.30
(cm)
$207.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ±1(≤300m), ±2(>300m)/≤1m＋L×0.25%， L = Target Range |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥10m-1200m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤0.6W@3.3V; Avg≤0.8W@3.3V |
| Power Supply | DC 2.5 - 3.5V (typ 3.3V) |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +50°C |

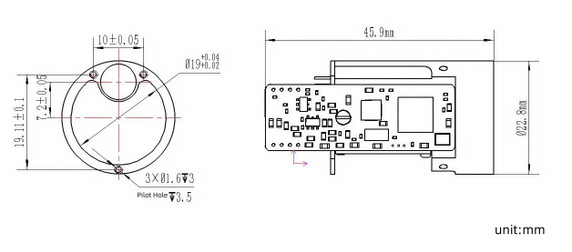

| PHYSICAL SPECIFICATIONS | |
| Product Height | 23 mm |
| Product Length | 23 mm |
| Product Weight | ≤0.02 kg |
| Product Width | 46 mm |
| Volume | ≤23 x 46 x 23 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
