Norsat International Inc.

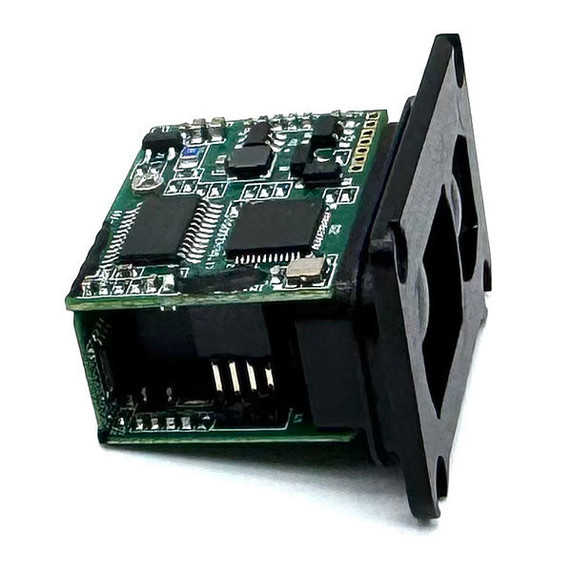

Norsat LRFA1200AA OPTIVIA 905 nm Laser Rangefinder LRFA1200AA
Product Code:
LRFA1200AA
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.01 KGS
Width:
2.62
(cm)
Height:
1.42
(cm)
Depth:
2.65
(cm)
$207.00
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1m(<300m), ≤±2m(≥300m) |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥5m-1200m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤0.06W(Active-low enable); Avg≤1W |
| Power Supply | DC 3.3V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 14.2 mm |
| Product Length | 26.5 mm |
| Product Weight | ≤0.013 kg |
| Product Width | 26.2 mm |
| Volume | ≤26.5 x 26.2 x 14.2 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
5 customers are viewing this product
Details
| RF SPECIFICATIONS | |
| Laser Rangefinder Accuracy | ≤±1m(<300m), ≤±2m(≥300m) |
| Laser Rangefinder Operating Wavelength | 905nm±5nm |
| Laser Rangefinder Ranging Range | ≥5m-1200m (Large Target) |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | Standby≤0.06W(Active-low enable); Avg≤1W |
| Power Supply | DC 3.3V |
| INTERFACE SPECIFICATIONS | |
| External Interface Communication Interface | TTL |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 14.2 mm |
| Product Length | 26.5 mm |
| Product Weight | ≤0.013 kg |
| Product Width | 26.2 mm |
| Volume | ≤26.5 x 26.2 x 14.2 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 9015800090 |
| Warranty | 1 |
