Norsat International Inc.
Norsat LNB-100220 1000 Dual-Band Ku-Band Int Ref LNB
Product Code:
LNB-100220
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.38 KGS
Width:
6.00
(cm)
Height:
4.16
(cm)
Depth:
11.15
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 10.95 GHz |
| Input Frequency Band 2 | 11.20 - 11.45 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.20 GHz |
| LO Stability | Int Ref |
| LO Type | ±25 kHz |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Of Onboard Los | Dual-band |
| Output Frequency Band 1 | 950 - 1200 MHz |
| Output Frequency Band 2 | 950 - 1250 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40 to +60°C |

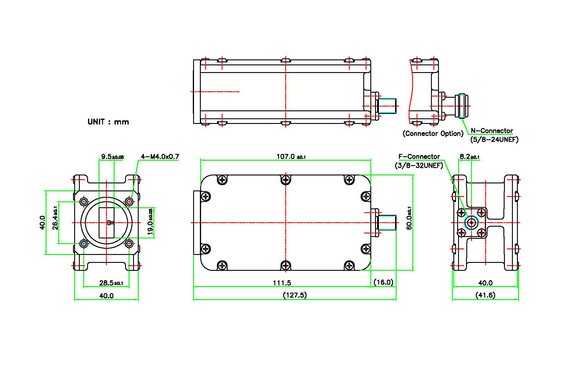

| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 111.5 mm |
| Product Weight | 0.38 kg |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 10.95 GHz |
| Input Frequency Band 2 | 11.20 - 11.45 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.20 GHz |
| LO Stability | Int Ref |
| LO Type | ±25 kHz |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Of Onboard Los | Dual-band |
| Output Frequency Band 1 | 950 - 1200 MHz |
| Output Frequency Band 2 | 950 - 1250 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 111.5 mm |
| Product Weight | 0.38 kg |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 1 year |
