Norsat International Inc.
Norsat LNB-100201 Ku-Band Single Band Auto-Reference PLL LNB
Product Code:
LNB-100201
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.36 KGS
Width:
5.60
(cm)
Height:
4.72
(cm)
Depth:
10.87
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -10 to +10 dBm via output connector |
| Input Frequency Band 1 | 13.40 - 13.70 GHz |
| LO Frequency 1 | 12.45 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1250 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ± 1.5 dB typ., ± 2.0 dB max. |
| Group Delay | +/- 0.25ns max. @ 50 MHz bandwidth, +/- 2ns max @ each band |
| Image Rejection | 40 dBc min. |
| Input Pressurizable | 0.1 bar max. |
| Input VSWR | 1.9 : 1 max. |
| LO Leakage | -60 dBm max. @ waveguide input |
| Max Input Power | 0 dBm instantaneous (not continuous) |
| Out Of Band Rejection | 20 dB min. |
| Output IP3 | +25 dBm min. |
| Output P1db | + 15 dBm min. |
| Output VSWR | 1.7 : 1 max. |
| Phase Noise 0.01Khz Offset Max | -35 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1Khz Offset Max | -83 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -118 dBc/Hz |
| Spurious In Band | Without signal: -70 dBm max., With -10 dBm output signal: -65 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 6 W max. |
| Power Requirements | +11 to +26V DC through output connector |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Alarm | Sum alarm, set via M&C to alarm in any combination of: LNA failure, Total current, LO lock (Ext/Int/n/a), signal power high/low, Supply voltage low. Open collector 3.3 to 28 V, max. 200 mA (pull-up 10 k Ohm at host side), pin 1 in M8 connector. |
| M And C | Via MODBUS RTU RS485 electrical interface, NOTE! Mates with M8 male connector/Cable, use only shielded cables ≥ CAT 5 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +80°C |
| Temperature Storage | -40 to +80°C |

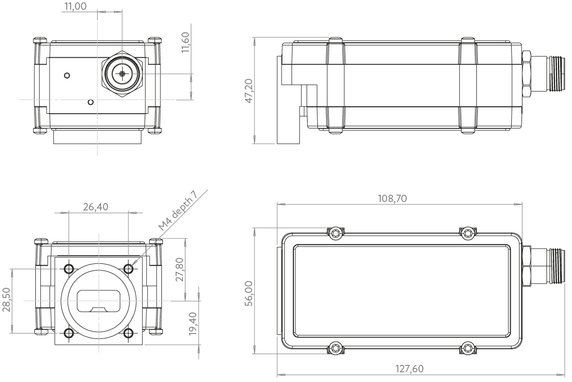

| PHYSICAL SPECIFICATIONS | |
| Product Height | 47.2 mm |
| Product Length | 108.7 mm |
| Product Weight | 0.360 kg |
| Product Width | 56.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Sweden |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -10 to +10 dBm via output connector |
| Input Frequency Band 1 | 13.40 - 13.70 GHz |
| LO Frequency 1 | 12.45 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1250 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ± 1.5 dB typ., ± 2.0 dB max. |
| Group Delay | +/- 0.25ns max. @ 50 MHz bandwidth, +/- 2ns max @ each band |
| Image Rejection | 40 dBc min. |
| Input Pressurizable | 0.1 bar max. |
| Input VSWR | 1.9 : 1 max. |
| LO Leakage | -60 dBm max. @ waveguide input |
| Max Input Power | 0 dBm instantaneous (not continuous) |
| Out Of Band Rejection | 20 dB min. |
| Output IP3 | +25 dBm min. |
| Output P1db | + 15 dBm min. |
| Output VSWR | 1.7 : 1 max. |
| Phase Noise 0.01Khz Offset Max | -35 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1Khz Offset Max | -83 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -118 dBc/Hz |
| Spurious In Band | Without signal: -70 dBm max., With -10 dBm output signal: -65 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 6 W max. |
| Power Requirements | +11 to +26V DC through output connector |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Alarm | Sum alarm, set via M&C to alarm in any combination of: LNA failure, Total current, LO lock (Ext/Int/n/a), signal power high/low, Supply voltage low. Open collector 3.3 to 28 V, max. 200 mA (pull-up 10 k Ohm at host side), pin 1 in M8 connector. |
| M And C | Via MODBUS RTU RS485 electrical interface, NOTE! Mates with M8 male connector/Cable, use only shielded cables ≥ CAT 5 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +80°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 47.2 mm |
| Product Length | 108.7 mm |
| Product Weight | 0.360 kg |
| Product Width | 56.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Sweden |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 1 year |
