Norsat International Inc.
Norsat LNB-100193 Ku-Band Single Band Ext Ref PLL LNB
Product Code:
LNB-100193
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
9.88
(cm)
Height:
7.00
(cm)
Depth:
16.45
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 3.4 - 4.8 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Type | PLL |
| Noise Temperature Max | 45K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2350 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | CPR-229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |

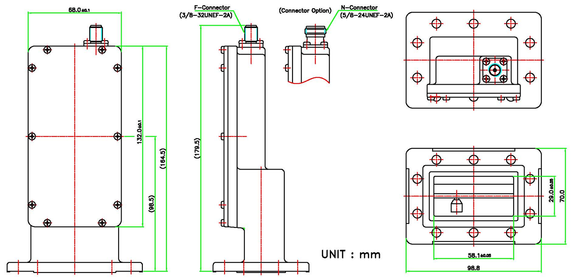

| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.575 kg |
| Product Width | 98.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 Kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 80 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 80 mm |
| Unit Package Weight | 0.68 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 3.4 - 4.8 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Type | PLL |
| Noise Temperature Max | 45K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2350 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | CPR-229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.575 kg |
| Product Width | 98.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 Kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 80 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 80 mm |
| Unit Package Weight | 0.68 kg |
| Warranty | 1 year |
