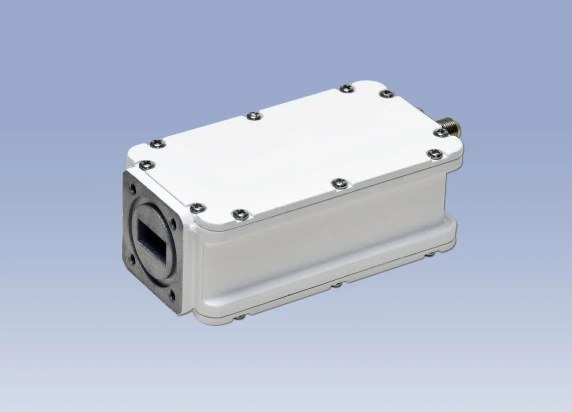

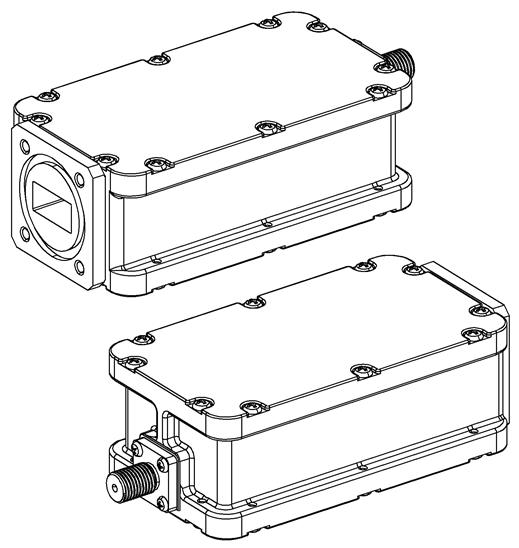

Norsat LNB-100190 Ku-Band Single Band PLL LNB
Product Code:
LNB-100190
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.38 KGS
Width:
6.00
(cm)
Height:
4.20
(cm)
Depth:
11.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

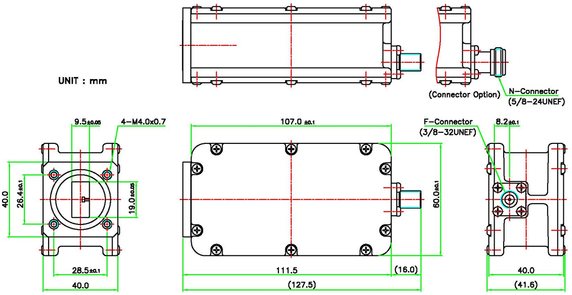

| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 10.0 - 10.5 GHz |
| LO Frequency 1 | 8.8 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.9 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1200 - 1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | 1 dB p-p max. |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 112 mm |
| Product Weight | 0.38 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 140 x 50 x 50 mm |
| Unit Package Height | 50 mm |
| Unit Package Length | 140 mm |
| Unit Package Width | 50 mm |
| Warranty | 1 year |
