Norsat International Inc.

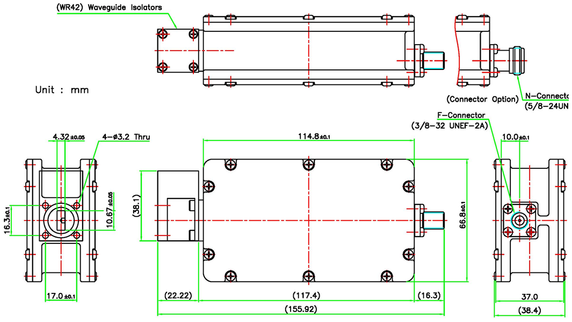

Norsat LNB-100187 Ka-Band Single Band PLL LNB
Product Code:
LNB-100187
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.56 KGS
Width:
6.68
(cm)
Height:
3.84
(cm)
Depth:
13.96
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 21.3 - 26.3 GHz |
| LO Frequency 1 | 20.00 GHz |
| LO Type | PLL |
| Noise Figure Max | 7.0 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1300 - 6300 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ±8.0 dB max. |
| Gain Ripple (At Per 40Mhz) | ±1.5 dB max. |
| Gain Variation Over Temperature | ±4.0 dB max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.5 : 1 max. (with waveguide isolator) |
| LO Leakage | -60 dBm max. at input |
| Output P1db | + 5 dBm min. |
| Output VSWR | 4.0 : 1 max. |
| Spurious In Band | -50 dBm min. at no signal |
| Spurious Out Of Band | -50 dBm min. at no signal |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 800 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38.4 mm |
| Product Length | 139.6 mm |
| Product Weight | 0.56 kg |
| Product Width | 66.8 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 148 x 95 x 65 mm |
| Unit Package Weight | 0.58 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 21.3 - 26.3 GHz |
| LO Frequency 1 | 20.00 GHz |
| LO Type | PLL |
| Noise Figure Max | 7.0 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1300 - 6300 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ±8.0 dB max. |
| Gain Ripple (At Per 40Mhz) | ±1.5 dB max. |
| Gain Variation Over Temperature | ±4.0 dB max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.5 : 1 max. (with waveguide isolator) |
| LO Leakage | -60 dBm max. at input |
| Output P1db | + 5 dBm min. |
| Output VSWR | 4.0 : 1 max. |
| Spurious In Band | -50 dBm min. at no signal |
| Spurious Out Of Band | -50 dBm min. at no signal |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 800 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38.4 mm |
| Product Length | 139.6 mm |
| Product Weight | 0.56 kg |
| Product Width | 66.8 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 148 x 95 x 65 mm |
| Unit Package Weight | 0.58 kg |
| Warranty | 1 year |
