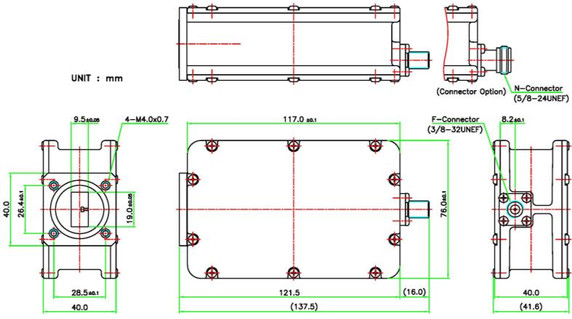

Norsat LNB-100181 Ku-Band Single Band PLL LNB
Product Code:
LNB-100181
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Width:
7.60
(cm)
Height:
4.16
(cm)
Depth:
13.75
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 12.25 - 12.75 GHz |
| LO Frequency 1 | 11.30 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.8 dB |
| Noise Figure Typ | 0.7 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 800 mA max (warm up) 500 mA max (running) |
| Power Requirements | +12 to +24V DC |
| Warm Up Time | 5 minutes |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 137.5 mm |
| Product Weight | 0.450 kg |
| Product Width | 76 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Height | 0 |
| Unit Package Length | 0 |
| Unit Package Width | 0 |
| Warranty | 1 year |
