Norsat International Inc.

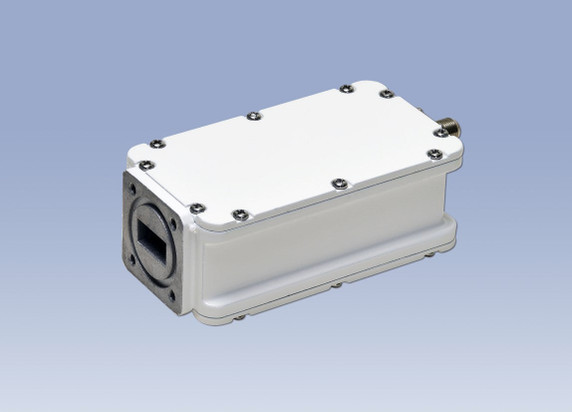

Norsat LNB-100156 Ku-Band LNB
Product Code:
LNB-100156
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.38 KGS
Width:
60.00
(cm)
Height:
41.60
(cm)
Depth:
111.50
(cm)
$1,864.00
Ku Band LNB, 11.45-12.2Ghz, L.O Freq:10.50Ghz, L.O Stab: +/-5KHz, Gain: 50dB typ, NF: 0.8dB, N-Conn
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Image Rejection | 40 dBc min |
| Input Frequency Band 1 | 11.45 - 12.20 GHz |
| LO Frequency 1 | 10.50 GHz |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Output Frequency Band | 950 - 1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 55 dB |
| Conversion Gain Min | 45 dB |
| Conversion Gain Typ | 50 dB |
| Gain Flatness ( Over Full Band) | 4 dB p-p max. |
| Gain Ripple At Per 36Mhz | 1dB p-p max. |
| Image Rejection | 10dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| Required Current | 350mA max. |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 cm |
| Product Length | 111.5 cm |
| Product Weight | 0.38 kg |
| Product Width | 60 cm |
| Waterproof | IP67 |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
Ku Band LNB, 11.45-12.2Ghz, L.O Freq:10.50Ghz, L.O Stab: +/-5KHz, Gain: 50dB typ, NF: 0.8dB, N-Conn
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Image Rejection | 40 dBc min |
| Input Frequency Band 1 | 11.45 - 12.20 GHz |
| LO Frequency 1 | 10.50 GHz |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Output Frequency Band | 950 - 1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 55 dB |
| Conversion Gain Min | 45 dB |
| Conversion Gain Typ | 50 dB |
| Gain Flatness ( Over Full Band) | 4 dB p-p max. |
| Gain Ripple At Per 36Mhz | 1dB p-p max. |
| Image Rejection | 10dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| Required Current | 350mA max. |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 cm |
| Product Length | 111.5 cm |
| Product Weight | 0.38 kg |
| Product Width | 60 cm |
| Waterproof | IP67 |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
