Norsat International Inc.

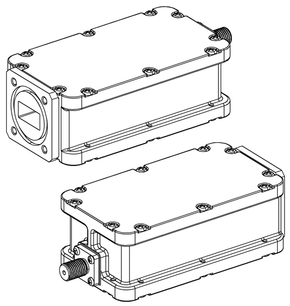

Norsat LNB-100148 1000 Ku-Band Single Band PLL LNB
Product Code:
LNB-100148
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.40 KGS
Width:
60.00
(cm)
Height:
41.60
(cm)
Depth:
111.50
(cm)
$374.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 11.40-12.2 GHz |
| LO Frequency 1 | 10.5 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 900-1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 cm |
| Product Length | 111.5 cm |
| Product Weight | 0.4 kg |
| Product Width | 60 cm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| Ex Works | Korea |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 11.40-12.2 GHz |
| LO Frequency 1 | 10.5 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 900-1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 cm |
| Product Length | 111.5 cm |
| Product Weight | 0.4 kg |
| Product Width | 60 cm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| Ex Works | Korea |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
