Norsat International Inc.
Norsat LNB-100126 C-Band 5G LNB and Band Pass Filter (Copy)
Product Code:
LNB-100126
Condition:
New
Availability:
1240 pcs
Weight:
0.50 KGS
Width:
9.85
(cm)
Height:
7.00
(cm)
Depth:
15.90
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

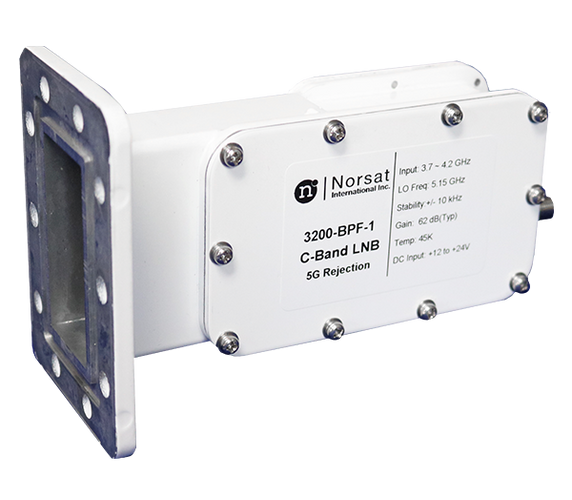

Norsat’s Low Noise Block downconverter plus Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3000-BPF Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.754 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| Noise Figure Max | 60K |
| Noise Figure Typ | 30K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1396 MHz |
| Product Family | 3000-BPF Series |
| Rejection Range | < 3.654 GHz and > 4.8 GHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 9 dBm min. |
| Output VSWR | 1.9 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 0.5 kg |
| Product Width | 98.5 mm |
| ADDITIONAL INFORMATION | |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 170 x 115 x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 170 mm |
| Unit Package Weight | 0.56 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
