Norsat International Inc.
Norsat LNB-100120 1000 Ku-Band Single Band EXT REF LNB (Copy)
Product Code:
LNB-100120
Condition:
New
Availability:
6 pcs
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.00
(cm)
Depth:
12.80
(cm)
$616.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 13.40 - 13.70 GHz |
| LO Frequency 1 | 12.45 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 60 dB |
| Conversion Gain Typ | 65 dB |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

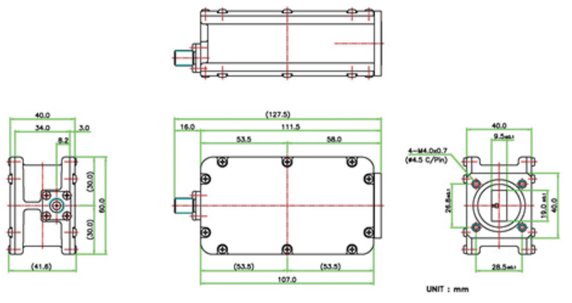

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 128 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 13.40 - 13.70 GHz |
| LO Frequency 1 | 12.45 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 60 dB |
| Conversion Gain Typ | 65 dB |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 128 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 3 years |
