Norsat International Inc.

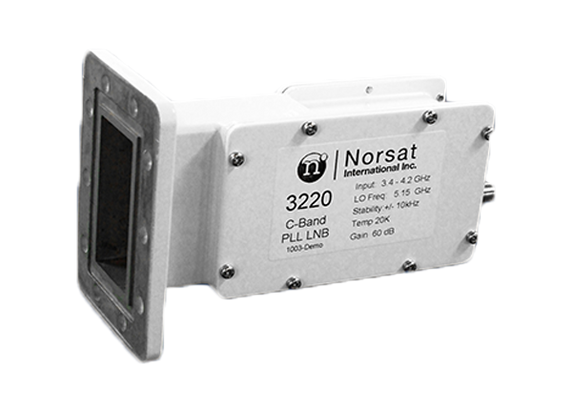

Norsat LNB-100078 C-Band Single-Band PLL LNB
Product Code:
LNB-100078
Condition:
New
Availability:
Available
Weight:
0.50 KGS
Width:
7.00
(cm)
Height:
9.90
(cm)
Depth:
14.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Customization | Modified Inrush Current |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Type | PLL |
| Noise Figure Max | 24K |
| Noise Figure Typ | 20K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 62 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 9 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -80 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

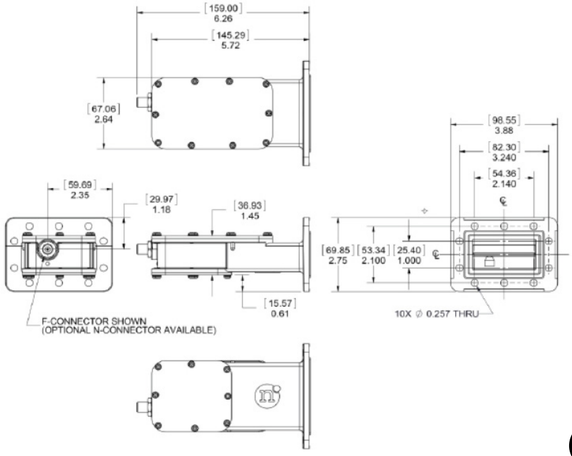

| PHYSICAL SPECIFICATIONS | |
| Product Height | 99 mm |
| Product Length | 145 mm |
| Product Weight | 0.5 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 70 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 100 mm |
| Unit Package Dimensions | 190 mm x 100 mm x 70 mm |
| Unit Package Weight | 0.68 kg |
| Warranty | 1 year |
