Norsat International Inc.
Norsat LNB-100076 Ku-Band Single Band PLL LNB
Product Code:
LNB-100076
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
6.00
(cm)
Height:
4.16
(cm)
Depth:
11.15
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.20 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | 7 dB p-p max. 8 dBp-p max. at -40 to +60 ℃ |
| Gain Ripple At Per 27Mhz | 1 dB p-p max. at -40 to +60℃ |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |

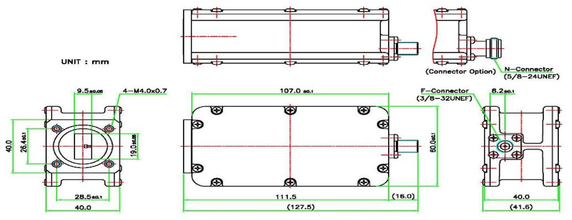

| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 111.5 mm |
| Product Weight | 400g |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.20 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | 7 dB p-p max. 8 dBp-p max. at -40 to +60 ℃ |
| Gain Ripple At Per 27Mhz | 1 dB p-p max. at -40 to +60℃ |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 111.5 mm |
| Product Weight | 400g |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
