Norsat International Inc.
Norsat LNB-100049 C-Band Single-Band PLL LNB
Product Code:
LNB-100049
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
9.80
(cm)
Height:
7.00
(cm)
Depth:
16.45
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 4.0 - 4.8 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Type | PLL |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 60 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p max. 6 dBp-p max. at -40 to +60 ℃ |
| Gain Ripple At Per 27Mhz | 1 dB p-p max. at -40 to +60℃ |
| Image Rejection | 45 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Noise Temperature | 35K max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-229 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |

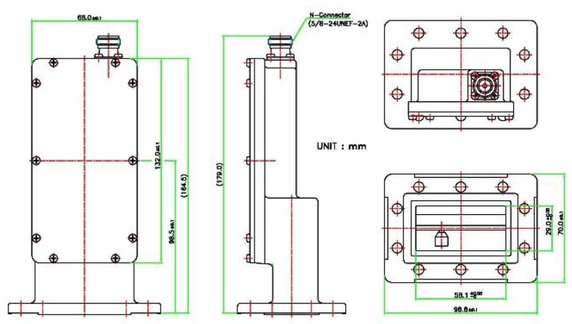

| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 575g |
| Product Width | 98.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 4.0 - 4.8 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Type | PLL |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 60 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness (Over Full Band) | 5 dB p-p max. 6 dBp-p max. at -40 to +60 ℃ |
| Gain Ripple At Per 27Mhz | 1 dB p-p max. at -40 to +60℃ |
| Image Rejection | 45 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Noise Temperature | 35K max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-229 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 575g |
| Product Width | 98.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
