Norsat International Inc.

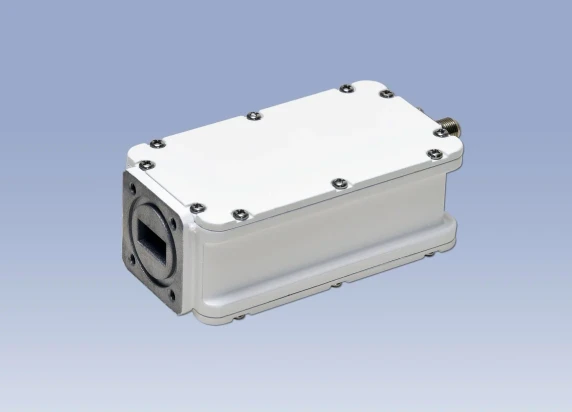

Norsat LNB-100032 C-Band PLL LNB
Product Code:
LNB-100032
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
7.00
(cm)
Height:
9.88
(cm)
Depth:
16.45
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Input Frequency Band | 3.72 - 4.20 GHz |
| LO Frequency | 5.15 GHz |
| LO Type | PLL |
| Noise Temperature Max | 30K |
| Output Frequency Band | 950 - 1430 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Gain Flatness | 5 dB p-p max. |
| Gain Flatness (At -40 To +60℃) | 5 dB p-p max. |
| Gain Flatness (Over Any 40Mhz) | 1 dB p-p max. |
| Image Rejection | 45 dBc min. |
| Input VSWR | 2.458 : 1 max. |
| Output P1db | +10 dBm min. |
| Output VSWR | 2.458 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-229 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |

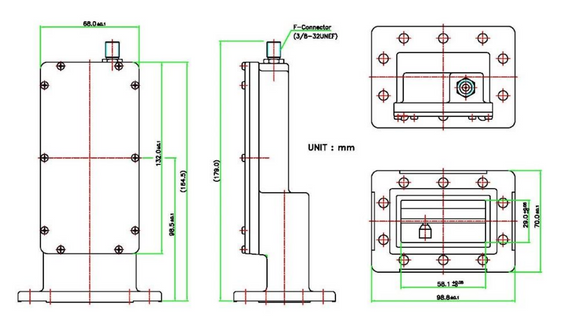

| PHYSICAL SPECIFICATIONS | |
| Product Height | 98.8 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.575 kg |
| Product Width | 70.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Input Frequency Band | 3.72 - 4.20 GHz |
| LO Frequency | 5.15 GHz |
| LO Type | PLL |
| Noise Temperature Max | 30K |
| Output Frequency Band | 950 - 1430 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Gain Flatness | 5 dB p-p max. |
| Gain Flatness (At -40 To +60℃) | 5 dB p-p max. |
| Gain Flatness (Over Any 40Mhz) | 1 dB p-p max. |
| Image Rejection | 45 dBc min. |
| Input VSWR | 2.458 : 1 max. |
| Output P1db | +10 dBm min. |
| Output VSWR | 2.458 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-229 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 98.8 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.575 kg |
| Product Width | 70.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
