Norsat International Inc.

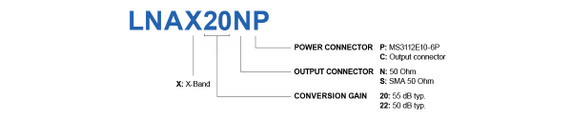

Norsat LNAX20SC Single-Band X-Band LNA - LNA Series
Product Code:
LNAX20SC
Condition:
New
Weight:
0.62 KGS
Width:
11.80
(cm)
Height:
5.90
(cm)
Depth:
7.00
(cm)
$2,641.00
Norsat Single-Band X-Band LNA - LNA Series
| KEY SPECIFICATIONS | |
| band | X-Band |
| input frequency band 1 | 7.25 - 7.75 GHz |
| noise figure | 0.8 dB |
| required current | 250 mA |
| RF SPECIFICATIONS | |
| conversion gain | 50 dB min., 55 dB typ., 60 dB max. |
| Gain Flatness | 4 dB p-p |
| gain ripple (at per 36MHz) | 1 dB p-p |
| input VSWR | 2.2 : 1 |
| output P1dB | + 5 dBm |
| output VSWR | 2.2 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Output connector |
| power supply | 12-24 VDC |
| INTERFACE SPECIFICATIONS | |
| input W/G flange | WR 112 |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 620 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 59.0 x 70.0 x 118.0 mm |
5 customers are viewing this product
Details
Norsat Single-Band X-Band LNA - LNA Series
| KEY SPECIFICATIONS | |
| band | X-Band |
| input frequency band 1 | 7.25 - 7.75 GHz |
| noise figure | 0.8 dB |
| required current | 250 mA |
| RF SPECIFICATIONS | |
| conversion gain | 50 dB min., 55 dB typ., 60 dB max. |
| Gain Flatness | 4 dB p-p |
| gain ripple (at per 36MHz) | 1 dB p-p |
| input VSWR | 2.2 : 1 |
| output P1dB | + 5 dBm |
| output VSWR | 2.2 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Output connector |
| power supply | 12-24 VDC |
| INTERFACE SPECIFICATIONS | |
| input W/G flange | WR 112 |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 620 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 59.0 x 70.0 x 118.0 mm |
