Norsat International Inc.

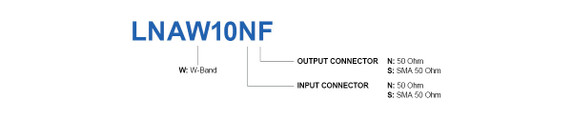

Norsat LNAW10NN Single-Band Wide-Band LNA
Product Code:
LNAW10NN
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.25 KGS
Width:
4.50
(cm)
Height:
10.00
(cm)
Depth:
2.26
(cm)
$3,223.00
| KEY SPECIFICATIONS | |
| Band | Wide-Band |
| Input Frequency Band 1 | 1000 - 6000 MHz |
| Noise Figure | 1.8 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 45 dB |
| Conversion Gain Min | 40 dB |
| Gain Flatness | 5 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output P1db | + 10 dBm |
| Output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | Pin through connector |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N - 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 100.0 mm |
| Product Length | 22.6 mm |
| Product Weight | 0.25 kg |
| Product Width | 45 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.178 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.445 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 115 x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.25 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
