Norsat International Inc.
Norsat LNAL20SS Single-Band L-Band LNA - LNA Series
Product Code:
LNAL20SS
Condition:
New
Weight:
0.25 KGS
Width:
10.00
(cm)
Height:
2.26
(cm)
Depth:
4.50
(cm)
$2,902.00
Norsat Single-Band L-Band LNA - LNA Series
| KEY SPECIFICATIONS | |
| band | L-Band |
| input frequency band 1 | 1150 - 1650 MHz |
| required current | 300 mA |
| RF SPECIFICATIONS | |
| conversion gain | 50 dB min., 60 dB typ., 65 dB max. |
| Gain Flatness | 2 dB p-p |
| gain ripple (at per 36MHz) | 1 dB p-p |
| input VSWR | 2.0 : 1 |
| output P1dB | + 10 dBm |
| output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Pin through connector |
| power supply | 12-24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA |
| ENVIRONMENTAL SPECIFICATIONS | |
| noise temperature | 45'K |
| temperature operational | -40 to +60°C |
| Weight | 250 g |
| PHYSICAL SPECIFICATIONS | |

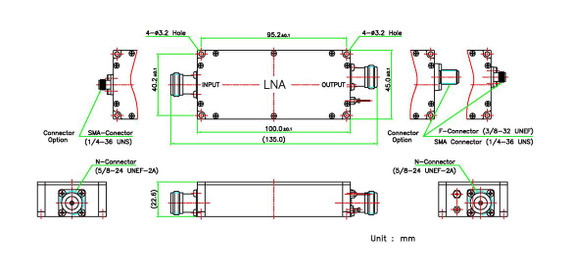

| dimensions (LxWxH) | 22.6 x 45.0 x 100.0 mm |
5 customers are viewing this product
Details
Norsat Single-Band L-Band LNA - LNA Series
| KEY SPECIFICATIONS | |
| band | L-Band |
| input frequency band 1 | 1150 - 1650 MHz |
| required current | 300 mA |
| RF SPECIFICATIONS | |
| conversion gain | 50 dB min., 60 dB typ., 65 dB max. |
| Gain Flatness | 2 dB p-p |
| gain ripple (at per 36MHz) | 1 dB p-p |
| input VSWR | 2.0 : 1 |
| output P1dB | + 10 dBm |
| output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power connector | Pin through connector |
| power supply | 12-24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | SMA |
| ENVIRONMENTAL SPECIFICATIONS | |
| noise temperature | 45'K |
| temperature operational | -40 to +60°C |
| Weight | 250 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 22.6 x 45.0 x 100.0 mm |
