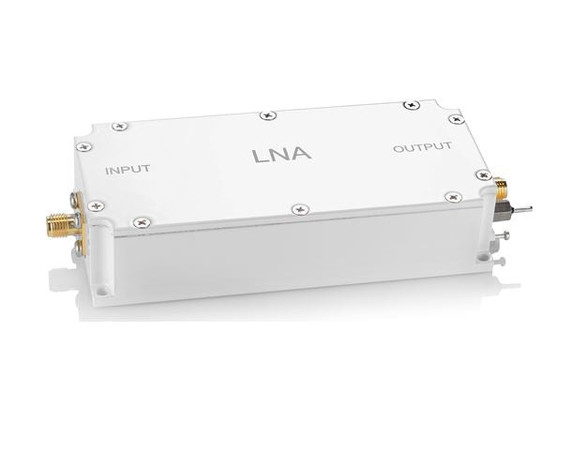

Norsat LNAL10NF Single-Band L-Band LNA - LNA Series

No reviews yet
Product Code: LNAL10NF
Condition: New
Weight: 0.25 KGS
Width: 10.00 (cm)
Height: 2.26 (cm)
Depth: 4.50 (cm)
$2,902.00

Norsat Single-Band L-Band LNA - LNA Series

KEY SPECIFICATIONS
band L-Band
input frequency band 1 1100 - 1700 MHz
required current 300 mA
RF SPECIFICATIONS
conversion gain 50 dB min., 60 dB typ., 65 dB max.
Gain Flatness 2 dB p-p
gain ripple (at per 36MHz) 1 dB p-p
input VSWR 2.0 : 1
output P1dB + 10 dBm
output VSWR 2.0 : 1
ELECTRICAL SPECIFICATIONS
power connector Pin through connector
power supply 12-24 VDC
INTERFACE SPECIFICATIONS
RF input connector N - 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
noise temperature 45'K
temperature operational -40 to +60°C
Weight 250 g
PHYSICAL SPECIFICATIONS

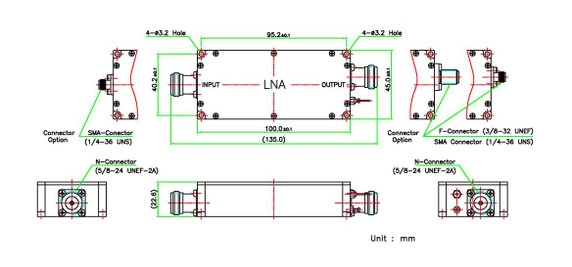

dimensions (LxWxH) 22.6 x 45.0 x 100.0 mm
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

Norsat Single-Band L-Band LNA - LNA Series

KEY SPECIFICATIONS
band L-Band
input frequency band 1 1100 - 1700 MHz
required current 300 mA
RF SPECIFICATIONS
conversion gain 50 dB min., 60 dB typ., 65 dB max.
Gain Flatness 2 dB p-p
gain ripple (at per 36MHz) 1 dB p-p
input VSWR 2.0 : 1
output P1dB + 10 dBm
output VSWR 2.0 : 1
ELECTRICAL SPECIFICATIONS
power connector Pin through connector
power supply 12-24 VDC
INTERFACE SPECIFICATIONS
RF input connector N - 50 Ohm
ENVIRONMENTAL SPECIFICATIONS
noise temperature 45'K
temperature operational -40 to +60°C
Weight 250 g
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 22.6 x 45.0 x 100.0 mm
