Norsat International Inc.

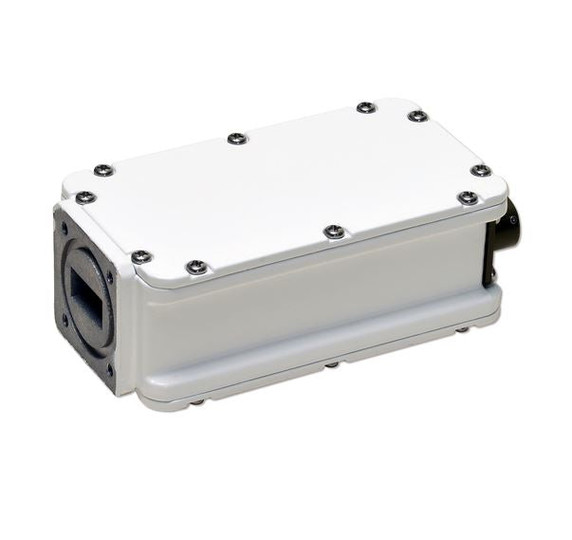

Norsat LNAKU10SP Single-Band Ku-Band LNA - LNA Series

No reviews yet

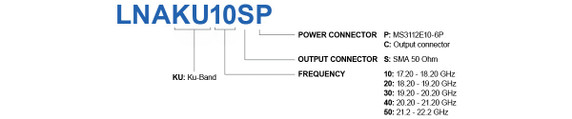

Product Code: LNAKU10SP
Condition: New
Weight: 0.45 KGS
Width: 11.15 (cm)
Height: 4.11 (cm)
Depth: 6.00 (cm)
$2,458.00

Norsat Single-Band Ku-Band LNA - LNA Series

KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 11.70 GHz
noise figure 0.8 dB
required current 250 mA
RF SPECIFICATIONS
conversion gain 50 dB min., 55 dB typ., 60 dB max.
Gain Flatness 4 dB p-p
gain ripple (at per 36MHz) 1 dB p-p
input VSWR 2.0 : 1
output P1dB + 5 dBm
output VSWR 2.0 : 1
ELECTRICAL SPECIFICATIONS
power connector MS3112E10-6P
power supply 12-24 VDC
INTERFACE SPECIFICATIONS
input W/G flange WR 75
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
Waterproofing IP 67
Weight 450 g
PHYSICAL SPECIFICATIONS

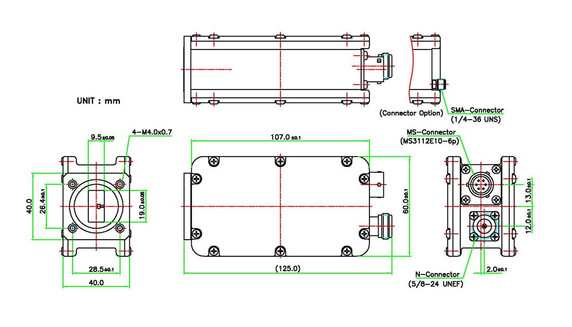

dimensions (LxWxH) 60.0 x 41.6 x 111.5 mm
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

Norsat Single-Band Ku-Band LNA - LNA Series

KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 11.70 GHz
noise figure 0.8 dB
required current 250 mA
RF SPECIFICATIONS
conversion gain 50 dB min., 55 dB typ., 60 dB max.
Gain Flatness 4 dB p-p
gain ripple (at per 36MHz) 1 dB p-p
input VSWR 2.0 : 1
output P1dB + 5 dBm
output VSWR 2.0 : 1
ELECTRICAL SPECIFICATIONS
power connector MS3112E10-6P
power supply 12-24 VDC
INTERFACE SPECIFICATIONS
input W/G flange WR 75
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
Waterproofing IP 67
Weight 450 g
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 60.0 x 41.6 x 111.5 mm
