Norsat International Inc.
Norsat LNAKA50SP Single-Band Ka-Band LNA
Product Code:
LNAKA50SP
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.45 KGS
Width:
4.50
(cm)
Height:
10.36
(cm)
Depth:
6.00
(cm)
$2,945.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 21.20 - 22.20 GHz |
| Noise Figure Max | 1.5 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness | 4 dB p-p |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p |
| Input VSWR | 2.2 : 1 |
| Output P1db Min | + 5 dBm |
| Output VSWR | 2.2 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input W/G Flange | WR 42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |

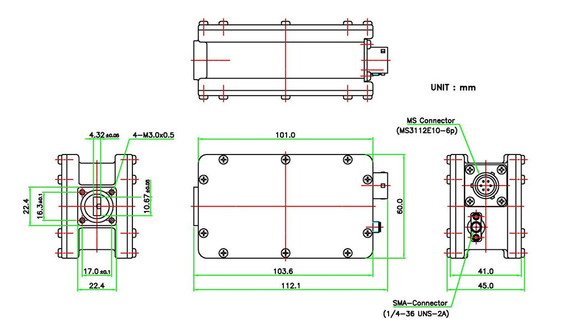

| PHYSICAL SPECIFICATIONS | |
| Product Height | 103.6 mm |
| Product Length | 60 mm |
| Product Weight | 0.45 kg |
| Product Width | 45 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.297 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.7425 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Weight | 0.475 kg |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
