Norsat LNAKA30SC Single-Band Ka-Band LNA - LNA Series

No reviews yet
Product Code: LNAKA30SC
Condition: New
Weight: 0.45 KGS
Width: 10.36 (cm)
Height: 4.50 (cm)
Depth: 6.00 (cm)
$2,641.00

Norsat Single-Band Ka-Band LNA - LNA Series

KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 19.20 - 20.20 GHz
noise figure 1.5 dB
required current 250 mA
RF SPECIFICATIONS
conversion gain 50 dB min., 55 dB typ., 60 dB max.
Gain Flatness 4 dB p-p
gain ripple (at per 36MHz) 1 dB p-p
input VSWR 2.2 : 1
output P1dB + 5 dBm
output VSWR 2.2 : 1
ELECTRICAL SPECIFICATIONS
power connector Output Connector
power supply 12-24 VDC
INTERFACE SPECIFICATIONS
input W/G flange WR 42
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
Waterproofing IP 67
Weight 450 g
PHYSICAL SPECIFICATIONS

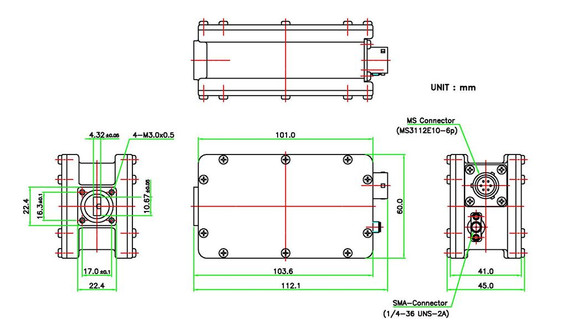

dimensions (LxWxH) 60.0 x 45.0 x 103.6 mm
