Norsat International Inc.

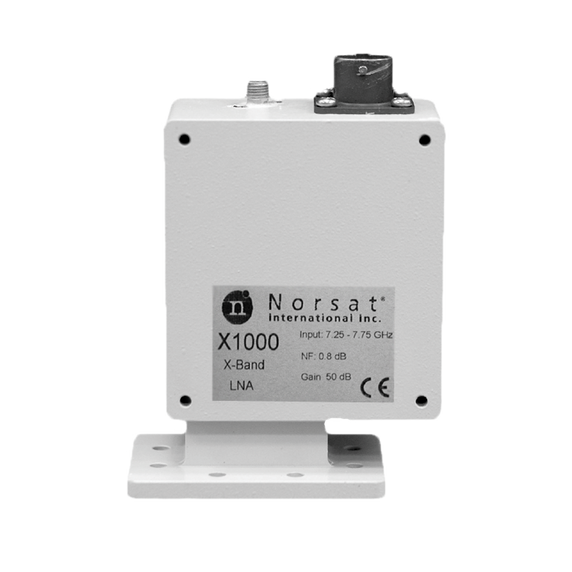

Norsat LNA-X1000N 1000 Single-Band X-Band LNA
Product Code:
LNA-X1000N
Condition:
New
Availability:
1 pcs
Weight:
0.55 KGS
Width:
7.70
(cm)
Height:
4.70
(cm)
Depth:
10.60
(cm)
$2,376.00
Norsat’s LNA's provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard X-Band LNAs are backed by forty years of experience as the industry’s leading provider of high performance LNAs. X1000 Series.
| KEY SPECIFICATIONS | |
| Band | X-Band |
| Input Frequency Band 1 | 7.25 - 7.75 GHz |
| Noise Figure | 0.8 dB max. at room temp. |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 55 dB |
| Conversion Gain Min | 45 dB |
| Conversion Gain Typ | 50 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | MS3112E10-6P |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-112G |
| RF Output Connector | N: 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -50 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 47 mm |
| Product Length | 106 mm |
| Product Weight | 0.55 kg |
| Product Width | 77 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.460 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.15 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 150 x 96 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 150 mm |
| Unit Package Width | 96 mm |
| Warranty | 3 years |
